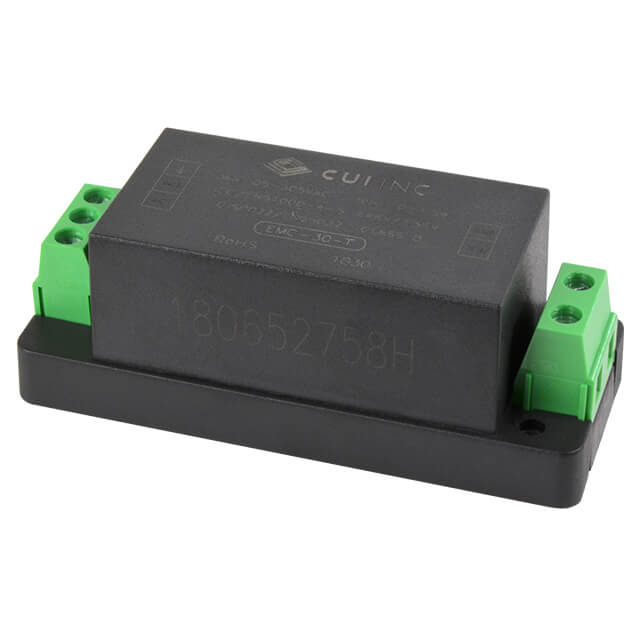

EMC-30-T

$19.47

Description：LINE FILTER 85V-305VAC 1.5A CHAS
Series：EMC-30
Mfr：CUI Inc.
Package：Tray

SKU:411f2b3f6a73 Category: Power Line Filter Modules Brand: CUI Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

EMC-30-T is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists CUI Inc.. Its product description is LINE FILTER 85V-305VAC 1.5A CHAS. Review the specifications below when checking this part for your BOM.

Power Line Filter Modules specifications for EMC-30-T

Description：LINE FILTER 85V-305VAC 1.5A CHAS
Series：EMC-30
Mfr：CUI Inc.
Package：Tray
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：85V ~ 305V
Current：1.5 A
Frequency - Operating：47Hz, 63Hz
Applications：General Purpose
Approval Agency：-
Operating Temperature：-40°C ~ 85°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Phase)：-

Power Line Filter Modules datasheet and documents for EMC-30-T

EMC-30-T

Power Line Filter Modules Overview

The CUI Inc. EMC-30-T is a single-phase AC power line filter module designed for chassis mounting. It provides 30 dB of attenuation and operates with an input voltage range of 85 VAC to 305 VAC. The unit features an inductance of 36.8 mH and supports a current rating of 1.5 A. It functions within a temperature range of -40°C to +85°C and complies with RoHS standards, ensuring lead-free construction.

Power Line Filter Modules Feature Summary

Provides 30 dB attenuation for noise suppression
Single-phase AC power line filtering capability
Chassis mount mechanical configuration

Power Line Filter Modules Applications

General purpose electronic equipment
Industrial control systems
Power supply input stages

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version to confirm exact terminal configurations and pinout definitions before integration. Ensure the mounting hardware matches the chassis design specifications. Confirm that the operating environment remains within the specified -40°C to +85°C thermal limits to maintain performance integrity and compliance with RoHS requirements.

Power Line Filter Modules Selection Notes

Select this component when a compact, single-phase EMI filter is required for chassis installation. It is suitable for applications needing 30 dB attenuation at 1.5 A. Consider the 36.8 mH inductance value for circuit compatibility. Verify that the 85-305 VAC input range aligns with the system's power distribution network.

Power Line Filter Modules Part Context

This part belongs to the CUI Inc. EMC series of power line filter modules. These components are engineered to reduce electromagnetic interference in AC power lines. The series offers various ratings for different current and voltage requirements, maintaining a consistent chassis-mount form factor for easy integration into industrial enclosures.
