ENW-89853A1KF

RF Transceiver Modules And Modems Overview

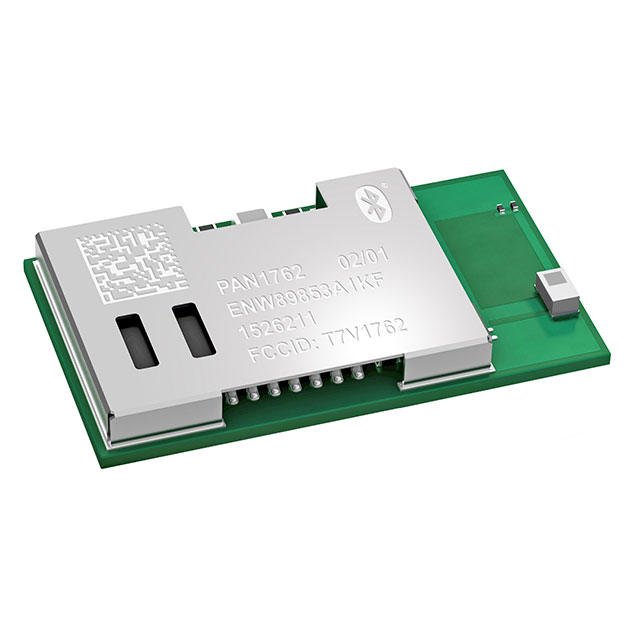

The ENW-89853A1KF is a Bluetooth v5.0 transceiver module manufactured by Panasonic Industry, designed for surface-mount integration. It operates within the 2.4 GHz frequency band and supports the 802.15.1 protocol standard. The module utilizes the PAN1762 chipset and functions with a supply voltage range of 1.9V to 3.6V. Its physical dimensions are specified as 15.6mm x 8.7mm x 1.8mm. This component serves as an integrated solution for wireless communication applications requiring compact form factors and compliant Bluetooth Low Energy capabilities.

RF Transceiver Modules And Modems Feature Summary

• Integrates Bluetooth v5.0 protocol support for standardized wireless connectivity
• Utilizes the PAN1762 chipset for efficient signal processing
• Features a compact surface-mount design suitable for space-constrained PCB layouts

RF Transceiver Modules And Modems Applications

• Bluetooth Low Energy (BLE) device development
• Wireless sensor network integration
• IoT peripheral connectivity modules

RF Transceiver Modules And Modems Procurement Notes

Verify component authenticity through authorized Panasonic Industry distributors or certified partners. Confirm that the received units match the specific PAN1762-based configuration and adhere to RoHS compliance standards. Ensure storage conditions maintain integrity prior to assembly. Cross-reference part numbers carefully to distinguish between evaluation kits and standalone modules, as availability may vary by region.

RF Transceiver Modules And Modems Selection Notes

Select this module when a verified Bluetooth v5.0 solution with a 2.4 GHz interface is required. The PAN1762 chipset provides a balanced approach for low-power applications. Consider the 1.9V to 3.6V operating range for power supply compatibility. The small footprint allows for dense circuit board arrangements. Validate that the specific version aligns with regulatory requirements for the target deployment market.

RF Transceiver Modules And Modems Part Context

This component belongs to the Panasonic Industry Bluetooth module series, specifically leveraging the PAN1762 architecture. It represents a dedicated RF transceiver solution distinct from general-purpose microcontrollers. The module integrates necessary radio frequency components into a single surface-mount package, simplifying the design process for engineers implementing short-range wireless communication protocols in electronic devices.

RF Transceiver Modules And Modems Replacement Considerations

Publicly confirmed substitute part numbers for this specific module are not available in the provided documentation. Engineers should consult official Panasonic Industry replacement guides or contact technical support directly for validated alternatives. Using non-official substitutes may compromise protocol compliance and performance specifications.
