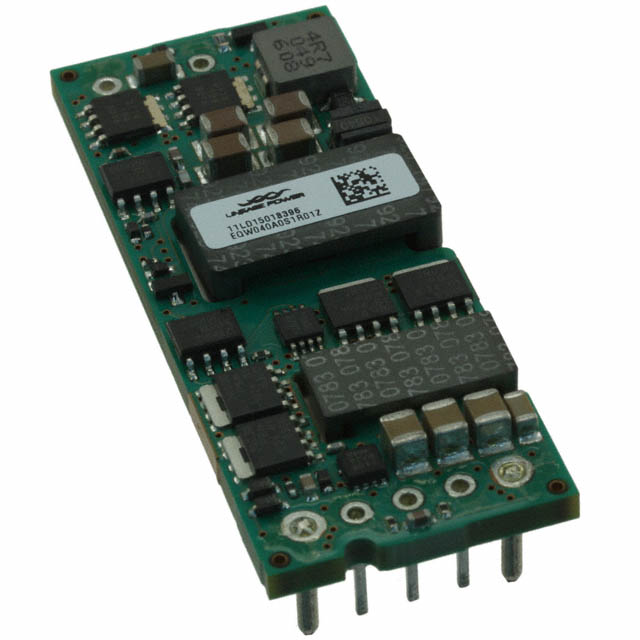

EQW040A0S1R01Z

EQW040A0S1R01Z is listed in the DC DC Converters range at ChipApex. The manufacturer field lists OmniOn Power™. Its product description is DC DC CONVERTER 1-12V 40W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for EQW040A0S1R01Z

• Description：DC DC CONVERTER 1-12V 40W
• Series：EQW040
• Mfr：OmniOn Power™
• Package：Bulk
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：1 ~ 12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：40A
• Power (Watts)：40 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, OVP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：83.20%
• Mounting Type：Through Hole
• Package / Case：8-DIP Module, 1/8 Brick
• Size / Dimension：2.28" L x 0.90" W x 0.34" H (57.9mm x 22.8mm x 8.5mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for EQW040A0S1R01Z
