ESM-06-331

Power Line Filter Modules Overview

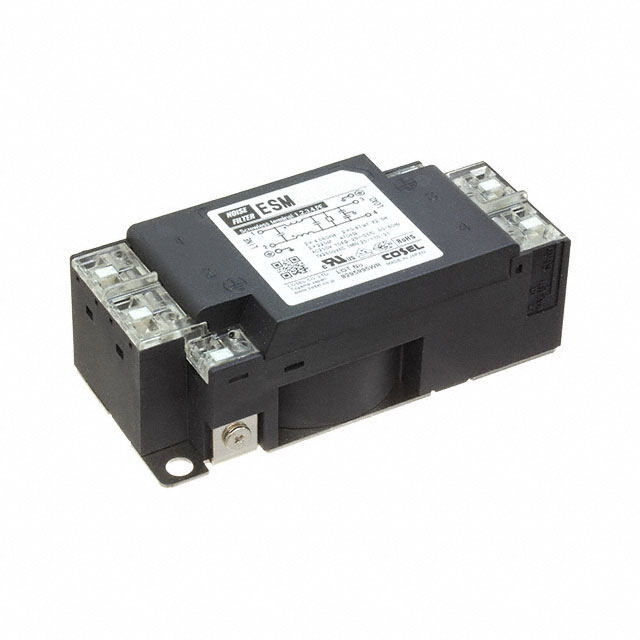

The Cosel ESM-06-331 is a single-phase power line filter designed for chassis mounting. It supports voltage ratings of 250 VAC and 250 VDC with a current rating of 6 A. The component features a leakage current of 37.5 uA and a capacitance of 330 pF. It operates within a frequency range of 10 kHz to 10 MHz. The unit utilizes screwless termination and weighs approximately 170 g.

Power Line Filter Modules Feature Summary

• Low leakage current design suitable for sensitive equipment
• Chassis mount configuration for secure installation
• Screwless termination for simplified wiring

Power Line Filter Modules Applications

• General purpose power conditioning
• Industrial control systems requiring low leakage
• Medical or laboratory equipment safety compliance

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version for the ESM-06-331 model to confirm mechanical dimensions and terminal specifications. Ensure compatibility with chassis mounting requirements and verify that the 6 A current rating meets system load demands. Confirm regulatory compliance status for the target market before integration.

Power Line Filter Modules Selection Notes

Select this filter when low leakage current is critical for safety or signal integrity. The chassis mount style requires appropriate panel cutouts and hardware. Compare against DIN rail options if space constraints differ. Verify that the 330 pF capacitance does not interfere with specific circuit operation at the operating frequency.

Power Line Filter Modules Part Context

This component belongs to the ES series of power line filters from Cosel USA, Inc. The series focuses on low leakage performance for applications where safety isolation is paramount. The ESM-06-331 represents the 6 A variant within this lineup, distinguished by its chassis mount form factor and screwless connection method.

Power Line Filter Modules Replacement Considerations

The ESM-06-331-D is listed as a related variant in distributor catalogs. Verify if the suffix indicates a different mounting style or termination type before substitution. Cross-reference mechanical drawings to ensure fitment compatibility.
