ESM-16-471

Power Line Filter Modules Overview

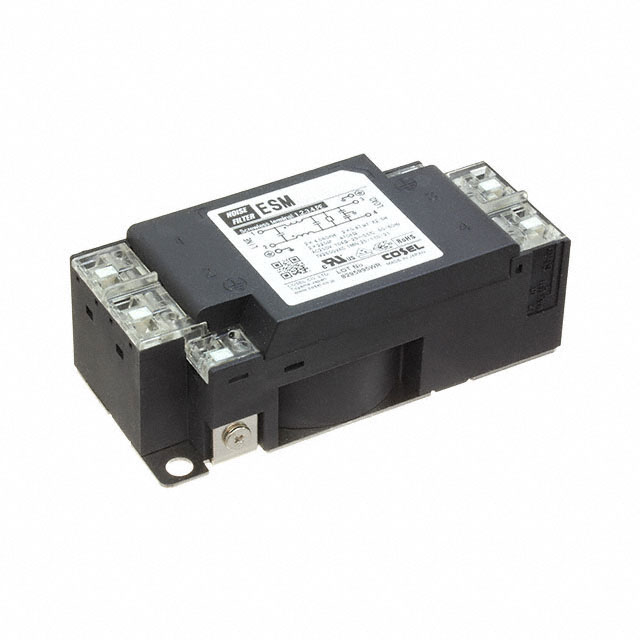

The ESM-16-471 is a single-phase power line filter module manufactured by Cosel USA, Inc. It is designed for chassis mounting and supports AC voltages up to 250VAC and DC voltages up to 250VDC. The unit handles a continuous current rating of 16A. It features a low leakage current specification of 50 uA and includes a capacitance value of 470 pF. The device utilizes terminal block connections for electrical interfacing.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for single-phase power lines
• Engineered with low leakage current characteristics suitable for sensitive equipment
• Constructed for secure chassis mounting applications

Power Line Filter Modules Applications

• Industrial control systems requiring EMI/EMI filtering
• Medical electronic devices with strict leakage current limits
• Precision measurement instrumentation

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version for the ESM-16-471 to confirm mechanical dimensions and terminal specifications before integration. Ensure the mounting surface meets chassis requirements. Confirm compliance documentation aligns with regional regulatory standards for the intended deployment environment.

Power Line Filter Modules Selection Notes

Select this component when a 16A capacity is required for single-phase circuits operating at 250VAC or 250VDC. The chassis mount style dictates enclosure design considerations. Verify that the 50 uA leakage current meets system safety isolation requirements compared to higher-leakage alternatives.

Power Line Filter Modules Part Context

This model belongs to the Cosel power line filter modules series. It shares functional similarities with other single-phase filters in the lineup but is distinguished by its specific 16A current rating and chassis mounting configuration. It serves as an EMC solution for noise reduction in power distribution paths.

Power Line Filter Modules Replacement Considerations

The EAM-16-471-D is a related variant within the same manufacturer portfolio. Note that the EAM series typically utilizes DIN rail mounting rather than chassis mounting. Verify mechanical fit and terminal type compatibility before substituting.
