ESP-16-221

Power Line Filter Modules Overview

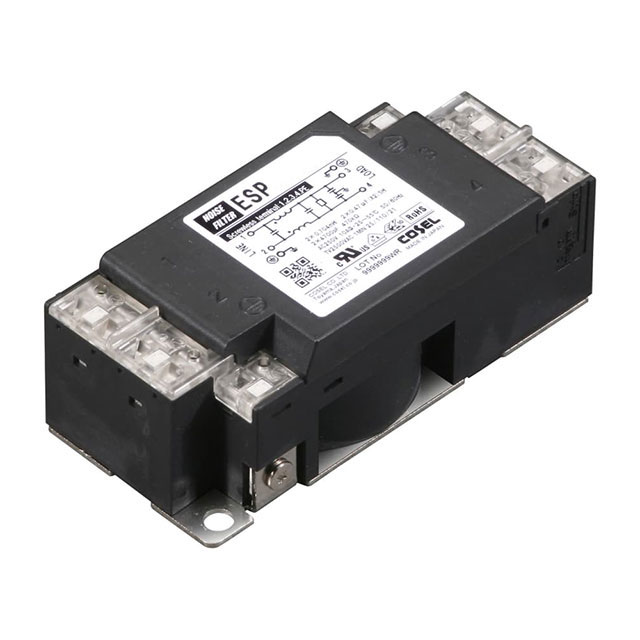

The ESP-16-221 is a single-phase EMI/EMC power line filter manufactured by Cosel USA, Inc. It supports a voltage rating of 250 VAC and 250 VDC with a current capacity of 16 A. The unit features chassis mount installation and screwless termination. Key electrical parameters include a leakage current of 25 uA, a capacitance of 220 pF, and an operating frequency range of 150 kHz to 1 MHz. It holds UL, CSA, DIN, and ENEC compliance certifications.

Power Line Filter Modules Feature Summary

• Provides common mode noise suppression for single-phase AC/DC circuits
• Utilizes screwless terminal connections for rapid assembly
• Designed for secure chassis mounting applications

Power Line Filter Modules Applications

• Industrial control panels requiring EMI suppression
• Medical equipment power input stages
• Test and measurement instrumentation

Power Line Filter Modules Procurement Notes

Verify the specific suffix designation against official Cosel documentation to confirm exact performance characteristics. Ensure the selected variant matches the required installation style and termination type for your enclosure design. Cross-reference certification requirements such as UL or ENEC with local regulatory standards before finalizing procurement decisions.

Power Line Filter Modules Selection Notes

Select this component when a 16 A current rating and 250 VAC/VDC operation are required for single-phase systems. The screwless termination method suits high-volume assembly processes. Verify that the 25 uA leakage current meets safety isolation limits for the intended application environment.

Power Line Filter Modules Part Context

This model belongs to the ES series of power line filters from Cosel. The series offers various current ratings and capacitance values to address different electromagnetic interference mitigation needs in electronic power supplies and industrial machinery.

Power Line Filter Modules Replacement Considerations

Consult official Cosel substitution guides for verified alternatives. Generic cross-references may not match the specific leakage current or capacitance values required for compliance.
