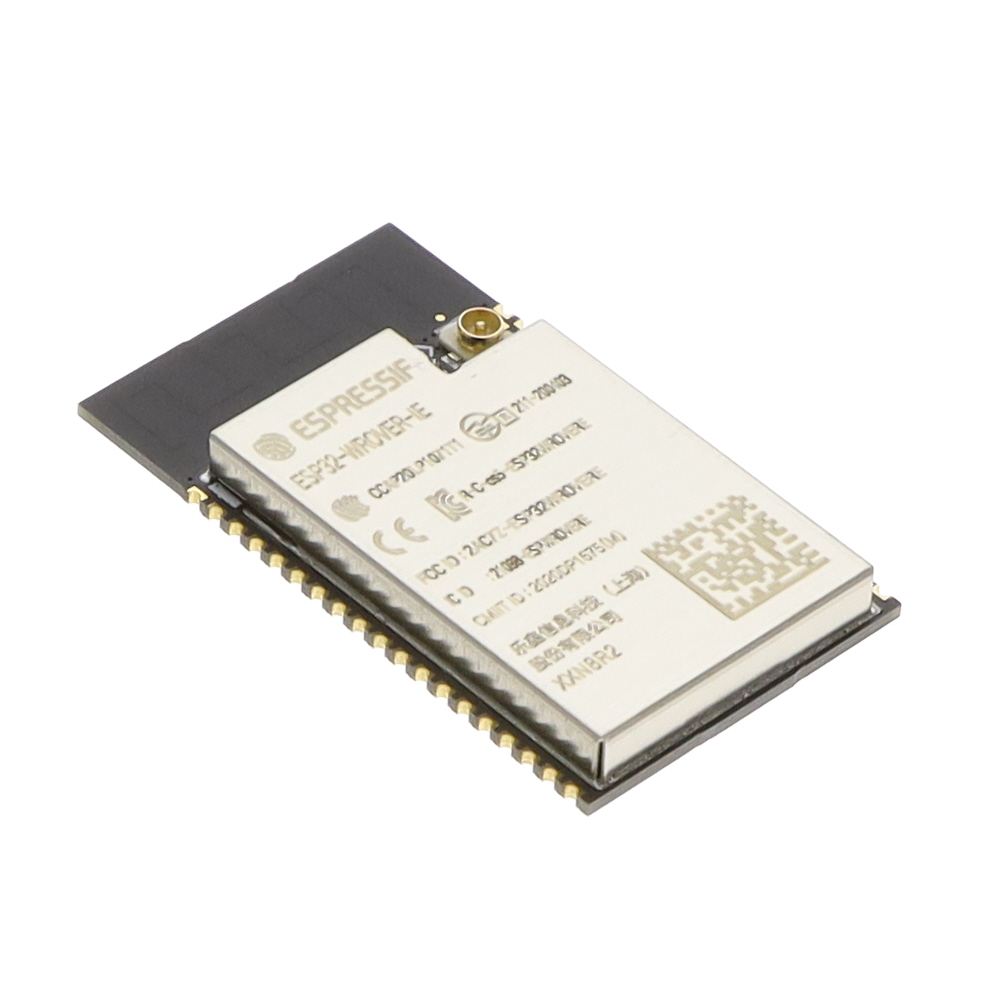

ESP32-WROVER-IE-N8R2

ESP32-WROVER-IE-N8R2 is listed in the RF Transceiver Modules And Modems range at ChipApex. The manufacturer field lists Espressif Systems. Its product description is RF TXRX MOD BT WIFIIPEX SMD. Review the specifications below when checking this part for your BOM.

RF Transceiver Modules And Modems specifications for ESP32-WROVER-IE-N8R2

• Description：RF TXRX MOD BT WIFIIPEX SMD
• Series：ESP32
• Mfr：Espressif Systems
• Package：Tape & Reel (TR),Cut Tape (CT)
• RF Family/Standard：Bluetooth, WiFi
• Protocol：802.11b/g/n, Bluetooth v4.2 + EDR, Class 1, 2 and 3
• Modulation：-
• Frequency：2.4GHz
• Data Rate：150Mbps
• Power - Output：20.5dBm
• Sensitivity：-97dBm
• Serial Interfaces：ADC, GPIO, I2C, I2S, JTAG, PWM, SDIO, SPI, UART
• Antenna Type：Antenna Not Included, I-PEX
• Utilized IC / Part：ESP32-D0WD-V3
• Memory Size：8MB Flash, 2MB SRAM
• Voltage - Supply：3V ~ 3.6V
• Current - Receiving：-
• Current - Transmitting：-
• Mounting Type：Surface Mount
• Operating Temperature：-40°C ~ 85°C
• Package / Case：38-SMD Module

RF Transceiver Modules And Modems datasheet and documents for ESP32-WROVER-IE-N8R2
