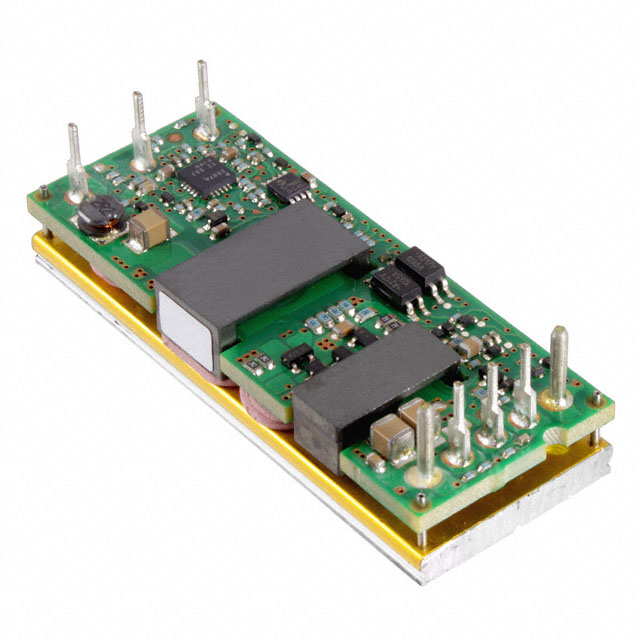

ESTW010A0A41Z

ESTW010A0A41Z is listed in the DC DC Converters range at ChipApex. The manufacturer field lists OmniOn Power™. Its product description is DC DC CONVERTER 5V 50W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for ESTW010A0A41Z

• Description：DC DC CONVERTER 5V 50W
• Series：STINGRAY™ ESTW010A0A
• Mfr：OmniOn Power™
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：10A
• Power (Watts)：50 W
• Voltage - Isolation：2.25 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, OVP, UVLO
• Operating Temperature：-40°C ~ 85°C
• Efficiency：91%
• Mounting Type：Through Hole
• Package / Case：8-DIP Module
• Size / Dimension：2.28" L x 0.90" W x 0.30" H (57.9mm x 22.8mm x 7.6mm)
• Supplier Device Package：-
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for ESTW010A0A41Z
