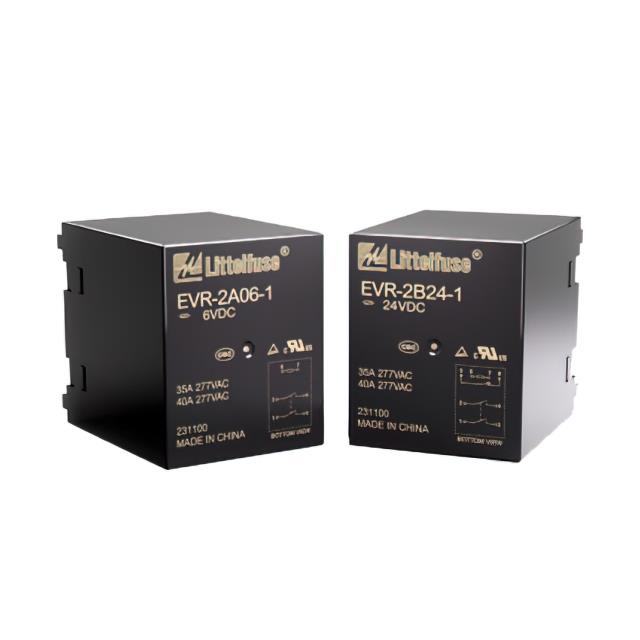

EVR-2A12-1

EVR-2A12-1 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists Littelfuse Inc.. Its product description is Relays. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for EVR-2A12-1

• Description：Relays
• Series：EVR
• Mfr：Littelfuse Inc.
• Package：Bulk
• Mounting Type：Through Hole
• Coil Voltage：12VDC
• Contact Form：DPST-NO (2 Form A)
• Contact Rating (Current)：40 A
• Switching Voltage：277VAC - Max
• Load - Max Switching：11080VA
• Coil Current：156.7 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：-
• Coil Insulation：Class F
• Must Operate Voltage：9 VDC
• Must Release Voltage：0.6 VDC
• Operating Temperature：-40°C ~ 85°C
• Contact Material：Silver Tin Oxide (AgSnO)
• Approval Agency：CQC, cURus, IEC, TUV
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：-
• Release Time：-

Power Relays, Over 2 Amps datasheet and documents for EVR-2A12-1
