F1100AA06

Power Line Filter Modules Overview

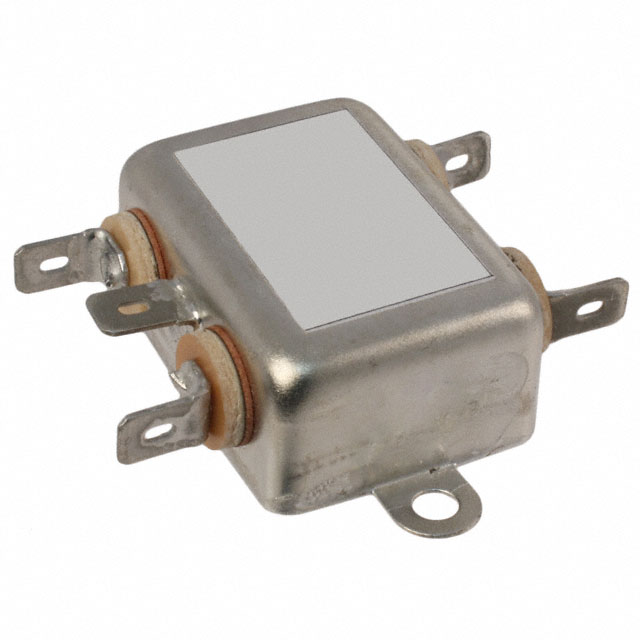

The Curtis Industries F1100AA06 is a single-phase EMC/EMI line filter module designed for power line noise suppression. It features a six-ampere current rating and operates at a maximum voltage of 250V AC within a 50/60Hz frequency range. The unit utilizes a single-stage filtering architecture to attenuate electromagnetic interference. Mechanical mounting is achieved via chassis mount configuration, ensuring stable installation in industrial enclosures. Electrical connections are provided through quick connect terminals, facilitating rapid integration into existing circuitry without complex wiring procedures.

Power Line Filter Modules Feature Summary

• Single-stage EMI/RFI attenuation for power line applications
• Chassis mount construction for secure mechanical stability
• Quick connect terminal interface for simplified assembly

Power Line Filter Modules Applications

• Industrial equipment power input stages
• Medical device power supply filtering
• Commercial machinery noise suppression

Power Line Filter Modules Procurement Notes

Verify the specific part number against official Curtis Industries documentation to confirm electrical ratings and physical dimensions. Ensure compatibility with the target system's voltage and current requirements before procurement. Confirm that the quick connect terminal type matches the existing wiring harness specifications to prevent connection failures during installation.

Power Line Filter Modules Selection Notes

Select this component when single-phase noise reduction is required for low-current applications up to six amperes. The chassis mount design suits enclosed environments where space efficiency and mechanical robustness are priorities. Evaluate the need for single-stage versus multi-stage filtering based on the specific attenuation requirements of the application environment.

Power Line Filter Modules Part Context

Curtis Industries manufactures a broad portfolio of electrical components, including terminal blocks and power line filters. The F1100AA06 belongs to their series of EMI/RFI suppression modules designed for industrial and commercial use. These components address electromagnetic compatibility challenges in sensitive electronic systems by filtering conducted noise from power lines.

Power Line Filter Modules FAQ

What is the maximum operating voltage for the F1100AA06?

The maximum operating voltage is 250V AC.

How is the F1100AA06 electrically connected?

It uses quick connect terminals for electrical interfacing.
