F1100AA10

Power Line Filter Modules Overview

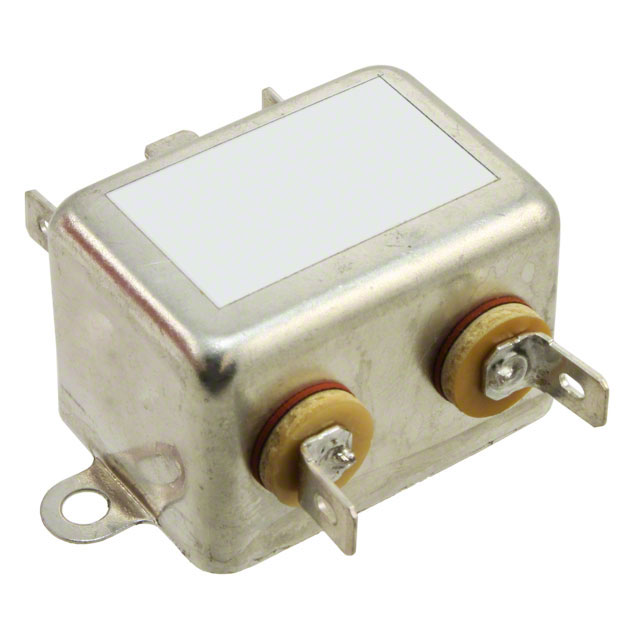

The F1100AA10 is a single-phase EMC/EMI line filter module manufactured by Curtis Industries. It features a chassis mount design with quick connect terminals for power entry applications. The component is rated for a maximum voltage of 250VAC at 50/60Hz and supports a current rating of 10A. It utilizes a single-stage filtering architecture to suppress radio frequency interference in general-purpose electronic systems.

Power Line Filter Modules Feature Summary

• Single-stage EMI/RFI noise suppression
• Chassis mount construction
• Quick connect terminal interface

Power Line Filter Modules Applications

• General-purpose electronic equipment noise suppression
• Power entry modules requiring EMI filtering
• Electromagnetic interference mitigation in AC power lines

Power Line Filter Modules Procurement Notes

Verify the specific datasheet revision and electrical characteristics against the manufacturer's official documentation before integration. Confirm that the chassis mounting style and quick connect terminal configuration align with the target system requirements. Ensure compliance with relevant safety standards applicable to the end-use environment.

Power Line Filter Modules Selection Notes

Select this component for applications requiring single-phase EMI filtering with a 10A current capacity. The chassis mount form factor suits panel or enclosure installations. Verify that the 250VAC rating meets the operational voltage requirements of the connected circuitry.

Power Line Filter Modules Part Context

This part belongs to the Curtis Industries F1100 series of single-phase RFI filters. The series offers various current ratings including 1, 3, 6, 10, and 20A options. These filters are designed for general-purpose noise suppression in AC power lines.

Power Line Filter Modules FAQ

What is the maximum operating voltage?

The maximum rated voltage is 250VAC.

How many filtering stages does it have?

It utilizes a single-stage filtering architecture.
