F1100BB06

Power Line Filter Modules Overview

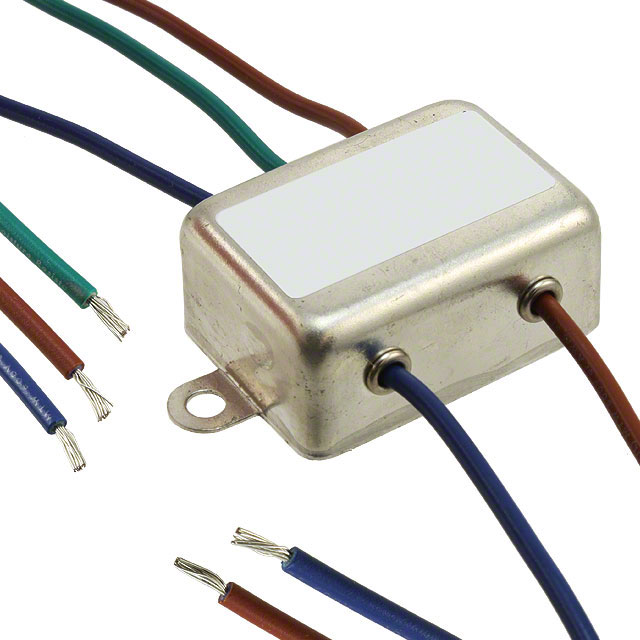

The F1100BB06 is a single-phase EMC/EMI line filter module manufactured by Curtis Industries. It features a chassis mount design with wire leads for connection. The component is rated for 250VAC and 6A current at 50/60Hz frequencies. It utilizes a single-stage filtering architecture to suppress electromagnetic interference in power lines.

Power Line Filter Modules Feature Summary

• Single-phase EMI/EMC filtering capability
• Chassis mount construction with wire leads
• Single-stage noise suppression design

Power Line Filter Modules Applications

• Power supply input stages
• Electronic equipment requiring EMI suppression
• Industrial control systems

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version for leakage current specifications, which range from 0.40 to 0.75 mA. Confirm that the wire lead configuration matches the intended circuit layout. Ensure the chassis mounting method aligns with the enclosure design requirements for proper grounding and stability.

Power Line Filter Modules Selection Notes

Select this model for applications requiring single-phase filtering at 6A and 250VAC. Consider the chassis mount form factor and wire lead termination when designing the assembly. Evaluate the single-stage performance against system noise immunity requirements before finalizing the component choice.

Power Line Filter Modules Part Context

This component belongs to the Curtis Industries F1100 series of power line filter modules. These filters are designed for general-purpose electromagnetic interference suppression in AC power circuits. The series offers various current and voltage ratings to suit different electronic equipment needs.

Power Line Filter Modules Replacement Considerations

Consult official Curtis Industries documentation for verified substitute part numbers. Do not assume compatibility with other manufacturers' filters without verifying electrical parameters and physical dimensions.
