F1150AA06

Power Line Filter Modules Overview

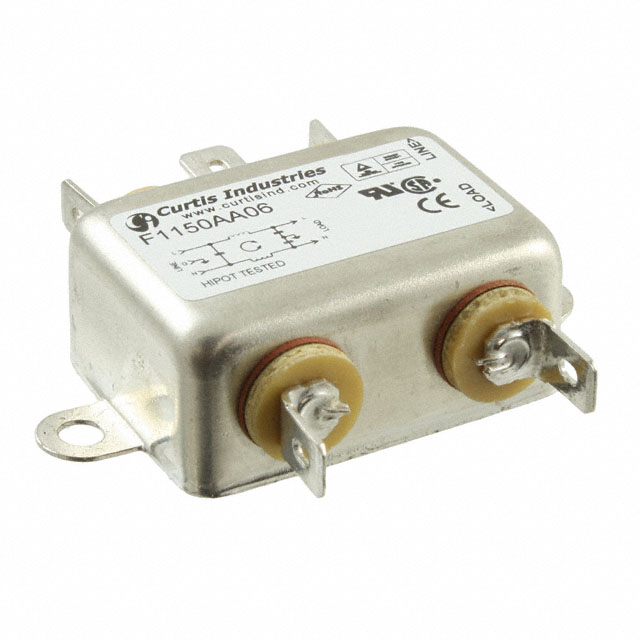

The Curtis Industries F1150AA06 is a single-phase EMI/RFI power line filter module designed for chassis mounting. It operates at a rated voltage of 250V AC and supports a current rating of 6A at 50/60Hz frequencies. The component utilizes a single-stage filtering architecture with quick connect terminals for circuit integration. It provides common mode emission control with a maximum leakage current of 0.40 mA at 250 V AC, ensuring compliance with electromagnetic interference standards.

Power Line Filter Modules Feature Summary

• Provides low-leakage solution for common mode EMI/RFI compliance
• Economical design for general purpose filtering applications
• Available with UL, CSA, TUV, and CE approvals

Power Line Filter Modules Applications

• General purpose electronic equipment
• Lighting systems
• Industrial scales
• Terminal blocks

Power Line Filter Modules Procurement Notes

Verify the specific terminal configuration matches the system requirements, as this model uses quick connect interfaces. Confirm that the 6A current rating and 250V AC voltage specifications align with the target circuit's operational limits. Ensure chassis mounting provisions are available in the enclosure design to accommodate the physical dimensions of the filter module.

Power Line Filter Modules Selection Notes

Select this component when a cost-effective, single-stage filter is required for common mode noise reduction. The F1150 series offers various current ratings from 1A to 20A; choose based on the specific load requirements. Consider the quick connect terminal style if wire leads or screw terminals are not preferred for the assembly process.

Power Line Filter Modules Part Context

This part belongs to the Curtis Industries F1150 Series RFI filters, which are engineered to reduce susceptibility to electromagnetic interference. The series includes multiple variants with different current ratings and terminal options, all sharing the same core filtering technology and approval certifications for global market acceptance.

Power Line Filter Modules Replacement Considerations

Other models within the F1150 series, such as F1150AA03 or F1150AA10, offer different current ratings but share similar form factors and performance characteristics. Verify that any substitute maintains the same voltage rating and terminal type to ensure compatibility.
