F1150BB06

Power Line Filter Modules Overview

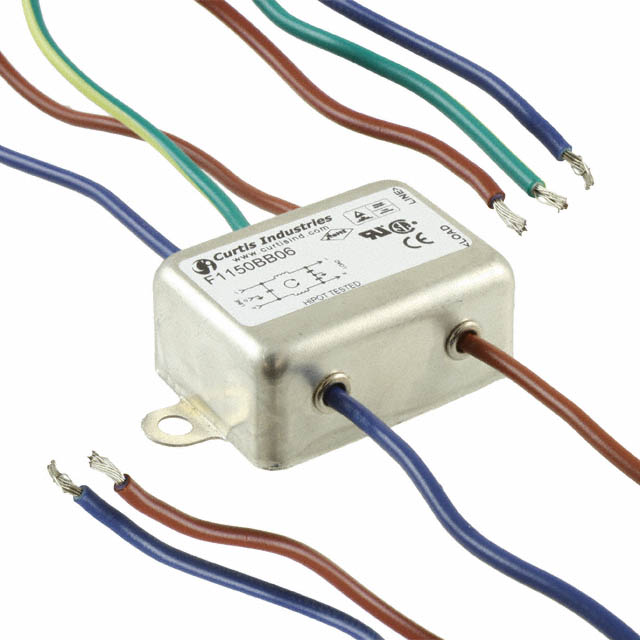

The Curtis Industries F1150BB06 is a single-phase EMC/EMI line filter module designed for chassis mounting. It operates at a rated voltage of 250V AC and supports a current rating of 6A at 50/60Hz frequencies. The component utilizes a single-stage filtering architecture with wire leads for connection. It provides common mode emission control to assist in achieving electromagnetic interference compliance.

Power Line Filter Modules Feature Summary

• Provides low-leakage solution for common mode EMI/RFI compliance
• Single-stage filtering design for conducted noise reduction
• Available with wire leads for direct integration

Power Line Filter Modules Applications

• General purpose equipment requiring EMI suppression
• Common mode noise filtration in industrial machinery
• Lighting systems needing conducted emission control
• Scale terminals and measurement devices

Power Line Filter Modules Procurement Notes

Verify the specific lead configuration and terminal type against the schematic, as the BB suffix indicates wire leads rather than screw terminals or quick connects found in other series variants. Confirm that the 6A current rating and 250VAC voltage align with the system's maximum load requirements before finalizing the order.

Power Line Filter Modules Selection Notes

Select this model when chassis mounting is required and wire lead termination is preferred over panel-mount screw connections. Ensure the application demands a single-stage filter solution. Compare leakage current specifications if strict safety isolation limits are mandated by the end-product regulatory framework.

Power Line Filter Modules Part Context

This component belongs to the Curtis Industries F1150 Series RFI filters. The series offers various current ratings from 1A to 20A and multiple terminal options including wire leads, quick connect, and screw terminals. All units in this family share similar low-leakage characteristics and UL, CSA, TUV, and CE approvals.

Power Line Filter Modules Replacement Considerations

Compatible substitutes within the same series include F1150AA06 and F1150BB03, provided the current rating matches the circuit requirements. Verify that alternative part numbers maintain the same wire lead configuration and chassis mounting footprint to ensure mechanical compatibility.
