F1199AA10

Power Line Filter Modules Overview

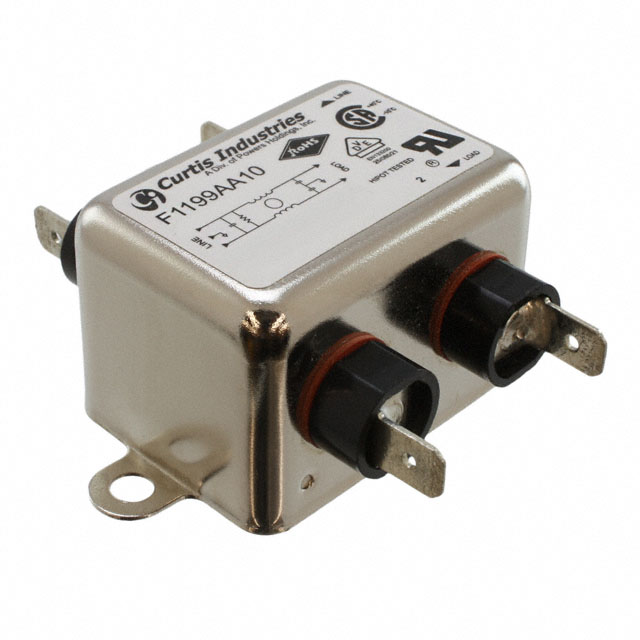

The Curtis Industries F1199AA10 is a single-phase EMC/EMI line filter module designed for power line noise reduction. It features a rated current of 10 A and a rated AC voltage of 250 V, operating at frequencies of 50/60 Hz. The unit utilizes a single-stage configuration with quick connect terminals for installation.

Power Line Filter Modules Feature Summary

• Reduces electromagnetic interference and electrical noise in power lines
• Utilizes quick connect terminal interface for simplified wiring
• Constructed as a single-stage filtration module

Power Line Filter Modules Applications

• Power supply input filtering
• Industrial equipment noise suppression
• Electronic device EMI mitigation

Power Line Filter Modules Procurement Notes

Verify the specific part number suffix to ensure compatibility with required mounting styles and terminal configurations. Confirm that the 10 A current rating and 250 VAC voltage specifications align with the target circuit requirements before procurement. Check RoHS compliance status if environmental regulations apply to the assembly.

Power Line Filter Modules Selection Notes

Select this component when single-phase noise attenuation is required for circuits operating up to 250 VAC and 10 A. Ensure the available PCB or chassis space accommodates the module dimensions. Verify that the quick connect terminal type matches the existing harness or wire gauge specifications of the system design.

Power Line Filter Modules Part Context

This component belongs to the Curtis Industries F1199 series of power line filter modules. These units are engineered to provide essential signal integrity by suppressing conducted emissions. The series offers various current ratings and voltage options to suit different industrial and commercial power distribution needs.

Power Line Filter Modules Replacement Considerations

Compatible substitutes within the same family include parts from the F1100, F1150, and F1199 series. Verify that alternative part numbers match the exact current, voltage, and frequency specifications of the original design to maintain performance standards.
