F1199BB06

Power Line Filter Modules Overview

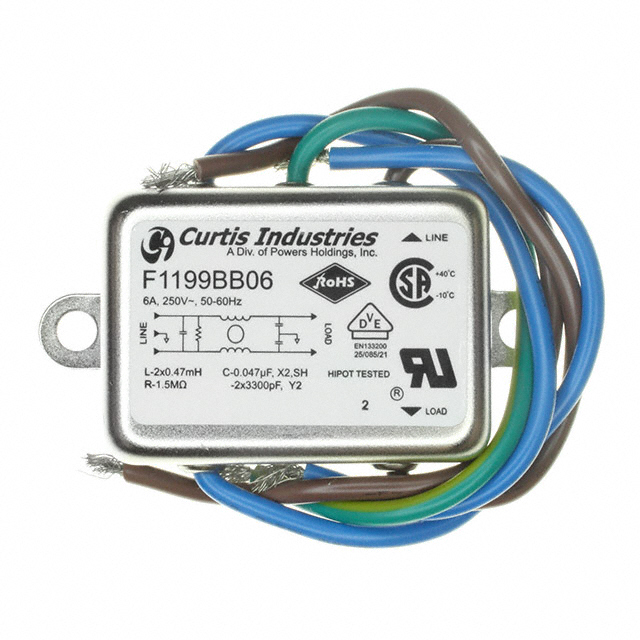

The Curtis Industries F1199BB06 is a single-phase EMC/EMI line filter module designed for chassis mounting. It features wire leads for connection and operates at a rated voltage of 250VAC with a maximum current capacity of 6A. The unit supports standard power frequencies of 50/60Hz and is constructed to be lead-free and RoHS compliant, ensuring adherence to environmental standards for electronic components.

Power Line Filter Modules Feature Summary

• Single-stage electromagnetic interference suppression
• Chassis mount configuration with wire leads
• RoHS compliant construction

Power Line Filter Modules Applications

• Industrial equipment power input filtering
• Commercial machinery EMI reduction
• Electronic device noise suppression

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version for the F1199BB06 to confirm exact attenuation curves and physical dimensions prior to integration. Ensure that the chassis mounting requirements align with the design specifications. Confirm RoHS compliance status if required by the final assembly regulations. Cross-reference the wire lead specifications with the intended circuit connections to guarantee compatibility.

Power Line Filter Modules Selection Notes

Select this component when a single-phase, 6A rated line filter is required for chassis installation. Consider the 250VAC rating and 50/60Hz frequency range to ensure operational compatibility. Evaluate the need for wire leads versus terminal blocks based on the system architecture. Verify space constraints for the chassis mount footprint before finalizing the selection.

Power Line Filter Modules Part Context

This part belongs to the Curtis Industries F1199 series of RFI filters. The series includes various current ratings such as 1A, 3A, 6A, 10A, and 20A options. These filters are generally used for power line noise suppression in AC applications. The F1199BB06 specifically denotes the 6A variant within this product family.

Power Line Filter Modules Replacement Considerations

Publicly confirmed substitute part numbers for the F1199BB06 are not available in the provided documentation. Users should consult official distributor channels or manufacturer support for verified alternatives if this specific model is discontinued or unavailable.
