F1200AA03

Power Line Filter Modules Overview

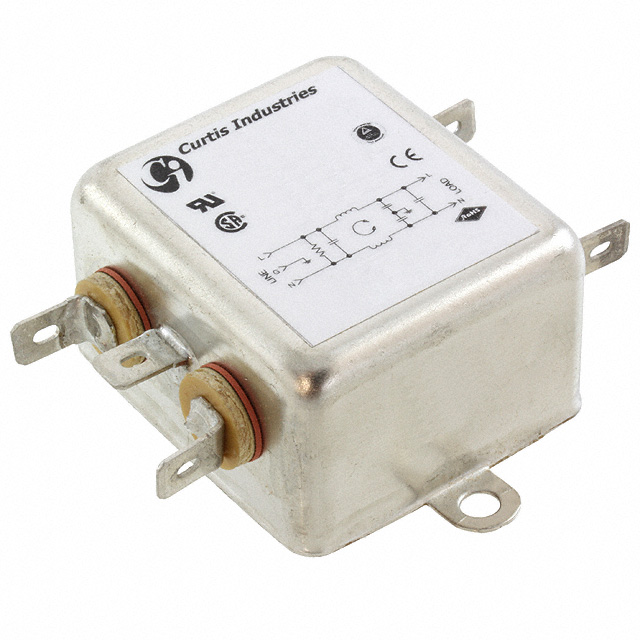

The Curtis Industries F1200AA03 is a single-phase RFI power line filter designed for chassis mounting. It features a current rating of 3A and a voltage rating of 250VAC, operating at 50/60Hz frequencies. The component exhibits a leakage current range between 0.40mA and 0.75mA. Classified as an EMI filter, it serves to suppress radio frequency interference in electrical circuits while maintaining compliance with safety standards for industrial applications.

Power Line Filter Modules Feature Summary

• Provides effective suppression of radio frequency interference on AC power lines
• Designed for secure chassis mounting installation
• Supports standard 50Hz and 60Hz operational frequencies

Power Line Filter Modules Applications

• Motor-driven equipment requiring steady-state current within the 3A rating
• Industrial machinery needing EMI noise filtration
• Commercial electrical systems managing specific line noise profiles

Power Line Filter Modules Procurement Notes

Verify the exact part number F1200AA03 against official Curtis Industries documentation to confirm specifications. Ensure the application environment supports the 250VAC rating and 3A current limit. Check for any specific mounting hardware requirements associated with the chassis mount design. Confirm that the leakage current characteristics align with system safety regulations before integration.

Power Line Filter Modules Selection Notes

Select this component when single-phase EMI filtering is required for low-current applications up to 3A. Consider the chassis mount form factor for panel integration needs. Evaluate the 250VAC voltage rating against the supply network parameters. Ensure the physical dimensions fit the designated enclosure space for the filter unit.

Power Line Filter Modules Part Context

Curtis Industries manufactures a range of electrical components including power line filters. The F1200 series represents their general-purpose single-phase filter lineup. This specific model falls under the category of RFI/EMI noise filters intended for protecting sensitive electronics from conducted interference on AC power inputs.

Power Line Filter Modules Replacement Considerations

Consult official Curtis Industries substitution guides for verified equivalent models. Ensure any replacement maintains the 3A current rating and 250VAC voltage specification. Verify compatibility with existing chassis mounting structures and terminal configurations.
