F1200AA10

Power Line Filter Modules Overview

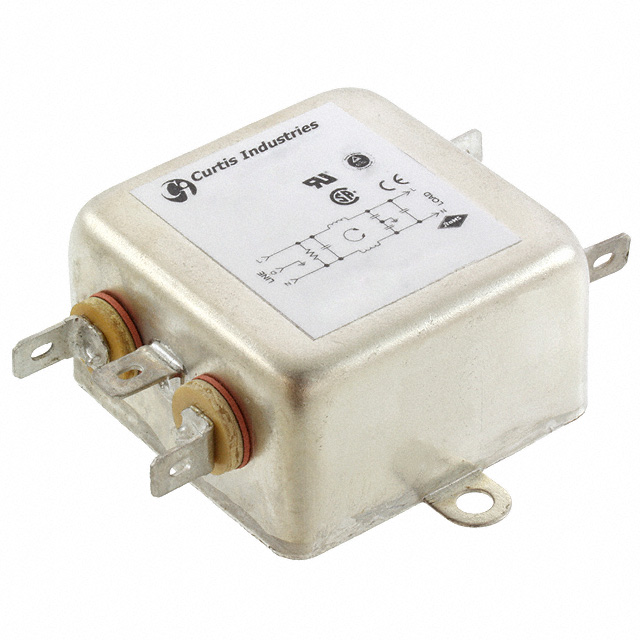

The Curtis Industries F1200AA10 is a single-phase EMC/EMI line filter module designed for chassis mounting. It operates at a rated voltage of 250VAC and supports frequencies of 50/60Hz. The component handles a maximum current of 10A. It utilizes a quick-connect terminal interface for installation. This single-stage filter is engineered to suppress radio frequency interference in power lines, ensuring compliance with electromagnetic compatibility standards for connected equipment.

Power Line Filter Modules Feature Summary

• Single-phase EMI/EMC filtering capability
• Chassis mount construction for secure installation
• Quick connect terminal interface

Power Line Filter Modules Applications

• Industrial control systems requiring RFI suppression
• Power supply input stages for electronic equipment
• Medical device power integration

Power Line Filter Modules Procurement Notes

Verify the specific part number suffix against official Curtis Industries documentation to confirm terminal configuration and mounting style. Ensure the operating environment temperature and current load do not exceed the 10A rating. Confirm that the quick-connect terminals match the mating connector specifications on the target PCB or wiring harness before finalizing procurement.

Power Line Filter Modules Selection Notes

Select this model when a single-phase, chassis-mount solution is required for 250VAC circuits. The 10A rating suits moderate power applications. Verify that the physical dimensions accommodate the available chassis space. Ensure the application does not require multi-stage filtering or different terminal types than those provided by this specific variant.

Power Line Filter Modules Part Context

This component belongs to the Curtis Industries F1200 series of RFI filters. The series offers various current ratings and voltage configurations. The F1200AA10 specifically denotes the 10A, 250VAC variant within this family. It shares common design principles with other models in the series but differs in electrical ratings and terminal options.

Power Line Filter Modules Replacement Considerations

Consult official Curtis Industries substitution guides for verified equivalents. Generic replacements may lack identical insertion loss characteristics or mechanical fit. Ensure any substitute matches the 10A current rating and 250VAC voltage specification precisely.
