F1299AA03

Power Line Filter Modules Overview

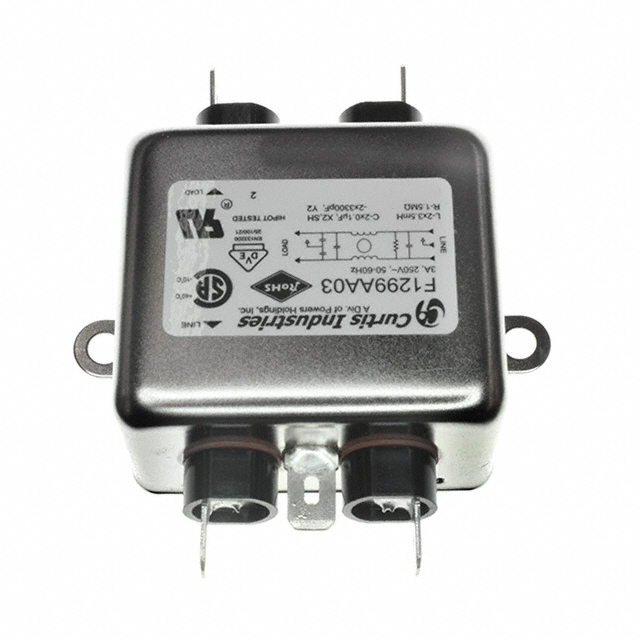

The F1299AA03 is a single-phase EMC/EMI power line filter module manufactured by Curtis Industries. It features a chassis mount installation type and utilizes quick connect termination style for circuit integration. The component is rated for an AC voltage of 250V and supports a current rating of 3 A at 50/60Hz operating frequencies. This single-stage filter design is intended for noise suppression in electrical systems.

Power Line Filter Modules Feature Summary

• Single-phase EMI/RFI noise filtration
• Chassis mount construction
• Quick connect terminal interface

Power Line Filter Modules Applications

• General purpose electronic equipment noise suppression
• Power line filtering for industrial control panels
• EMC compliance enhancement for AC powered devices

Power Line Filter Modules Procurement Notes

Verify the specific current rating and voltage tolerance against the target application requirements before procurement. Confirm that the quick connect termination style matches the existing wiring harness or PCB layout. Ensure the chassis mount form factor fits within the designated enclosure space. Cross-reference the manufacturer part number to ensure authenticity and correct revision level.

Power Line Filter Modules Selection Notes

Select this component when a single-stage, single-phase solution is required for 250VAC applications with up to 3A load. The chassis mount design necessitates adequate panel cutout dimensions and mounting hardware availability. Consider the physical footprint and lead length constraints associated with the quick connect terminals during system integration planning.

Power Line Filter Modules Part Context

This component belongs to the Curtis Industries F1299 series of power line filters. The series offers various current ratings and stage configurations for different noise attenuation needs. Curtis Industries specializes in electrical components including terminal blocks and filters for industrial and commercial applications.

Power Line Filter Modules FAQ

What is the leakage current specification for the F1299AA03?

The leakage current ranges from 0.15 to 0.25 mA.

Is the F1299AA03 a multi-stage filter?

No, it is a single-stage filter configuration.
