F1299BB06

Power Line Filter Modules Overview

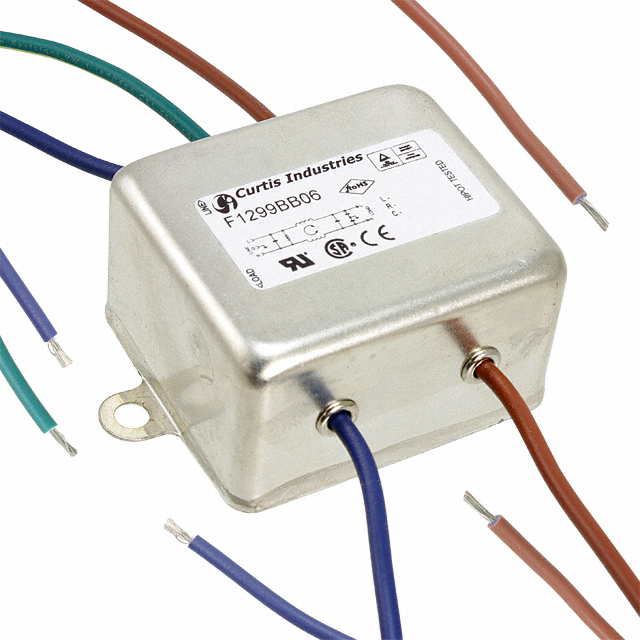

The Curtis Industries F1299BB06 is a single-phase EMC/EMI power line filter module designed for chassis mounting. It features a rated voltage of 250VAC at 50/60Hz and supports a maximum rated current of 6A. The unit utilizes quick connect terminals for circuit integration and is constructed as a single-stage filter to suppress radio frequency interference in electrical systems.

Power Line Filter Modules Feature Summary

• Single-phase electromagnetic compatibility filtering
• Chassis mount construction for secure installation
• Quick connect terminal interface for simplified wiring

Power Line Filter Modules Applications

• Industrial equipment power supply protection
• Electrical control panel noise suppression
• EMC compliance for AC powered devices

Power Line Filter Modules Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct current rating and voltage specifications. Confirm that the chassis mounting style and terminal type match the system requirements before procurement.

Power Line Filter Modules Selection Notes

Select this component when a single-stage, chassis-mount solution is required for 250VAC applications with up to 6A load. Ensure the enclosure design accommodates the physical dimensions and thermal requirements of the filter module.

Power Line Filter Modules Part Context

This part belongs to the Curtis Industries F1299 series of RFI filters. The series includes various current ratings and voltage configurations, with the BB06 suffix indicating the specific 6A, 250VAC variant within the product family.

Power Line Filter Modules Replacement Considerations

Compatible substitutes include other Curtis Industries F1299 series modules with matching electrical ratings. Verify that alternative parts maintain the same chassis mount form factor and quick connect terminal configuration.
