F1300AA03

Power Line Filter Modules Overview

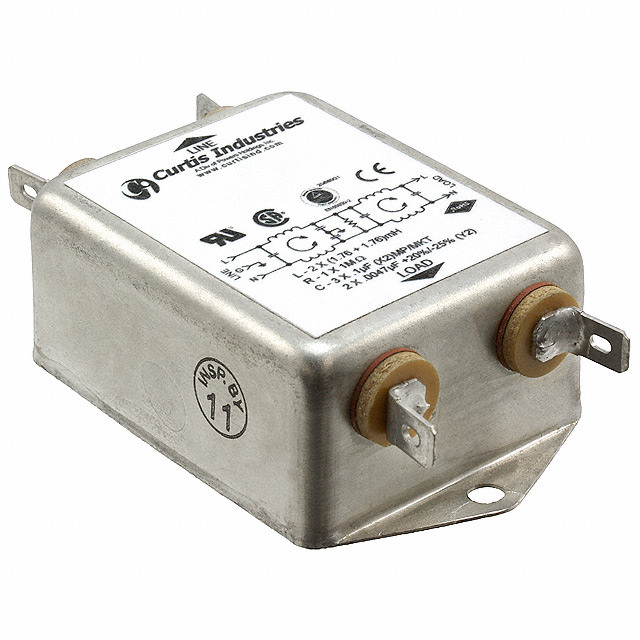

The Curtis Industries F1300AA03 is a single-phase EMC/EMI power line filter designed for chassis mounting. It features a two-stage configuration to suppress electromagnetic interference in AC circuits. The component is rated for 250VAC and supports a continuous current of 3A at standard operating frequencies of 50/60Hz. It utilizes quick-connect terminals for circuit integration. Certification bodies include CE, CSA, TUV, and UR, ensuring compliance with international safety standards.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount design for secure industrial installation
• Quick-connect terminal style for simplified wiring
• Multi-regulatory certification including CE, CSA, TUV, and UR

Power Line Filter Modules Applications

• Industrial control panels requiring EMI suppression
• Medical equipment power inputs
• Test and measurement instrument power stages
• General purpose AC power line filtering

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version for leakage current specifications, which may range between 0.40 to 0.75 mA depending on test conditions. Confirm that the quick-connect terminal dimensions match the mating connector requirements in the target assembly. Ensure the chassis mounting holes align with the mechanical drawing provided by Curtis Industries prior to procurement.

Power Line Filter Modules Selection Notes

Select this model when a single-phase, two-stage solution is required for 250VAC systems. The 3A rating suits moderate power applications. Verify that the chassis mount form factor fits the available enclosure space. Consider the quick-connect termination if screw-terminal alternatives are not preferred for the specific PCB or wire harness design.

Power Line Filter Modules Part Context

This component belongs to the Curtis Industries F1300 series of power line filters. The series offers various configurations for single-phase applications. The F1300AA03 specifically denotes the 3A, 250VAC variant with quick-connect terminals. It is part of a broader family of EMI/RFI filters designed for industrial and commercial electronic equipment protection.

Power Line Filter Modules Replacement Considerations

Publicly confirmed substitute part numbers include TE Connectivity Corcom Filters 6609031-5 and TDK B84112G0000B030. These alternatives are listed as similar components. Verify electrical ratings and mechanical dimensions before substitution.
