F1300AA15

Power Line Filter Modules Overview

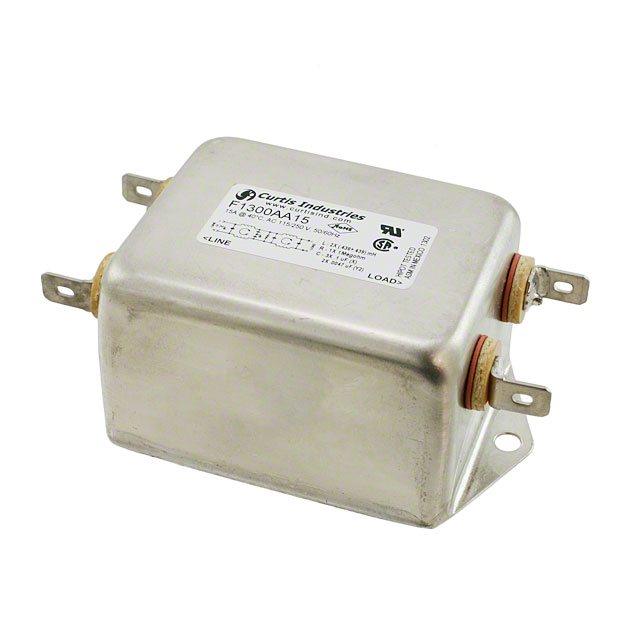

The Curtis Industries F1300AA15 is a single-phase EMI/RFI power line filter designed for AC mains applications. It features a rated current of 15A and operates at voltages between 115VAC and 250VAC at 50/60Hz. The unit utilizes a two-stage filtering architecture to suppress electromagnetic interference. Physical mounting is achieved via flange screw mount, while electrical connections are provided through quick connect terminals. The component is RoHS compliant.

Power Line Filter Modules Feature Summary

• Two-stage RFI/EMI suppression architecture
• Flange screw mount mechanical design
• Quick connect terminal interface

Power Line Filter Modules Applications

• Single-phase AC power line filtering
• Industrial equipment noise suppression
• Electrical panel integration

Power Line Filter Modules Procurement Notes

Verify the specific part number suffix against official Curtis Industries documentation to ensure correct voltage and current ratings. Confirm that the required mounting hardware matches the flange specifications. Check for RoHS compliance status if restricted substances are a project constraint. Ensure the operating environment temperature range aligns with the component's rated limits before procurement.

Power Line Filter Modules Selection Notes

Select this model when a 15A continuous current rating is required for single-phase systems. The 115-250VAC input range supports standard global mains frequencies. The flange mount style is suitable for chassis or panel installation where secure mechanical attachment is necessary. Verify that the quick connect terminal type matches existing wiring harnesses.

Power Line Filter Modules Part Context

This component belongs to the Curtis Industries F1300 series of power line filters. The series offers various current ratings and voltage configurations. The F1300AA15 specifically addresses higher current requirements within the single-phase category. It is distinct from barrier strips and other terminal products in the manufacturer's catalog.

Power Line Filter Modules Replacement Considerations

Cross-reference with F1300AA10 for lower current needs. Verify compatibility with F1500CA15 for alternative mounting styles. Consult official substitution guides for exact pinout and performance matching.
