F1399AA20

Power Line Filter Modules Overview

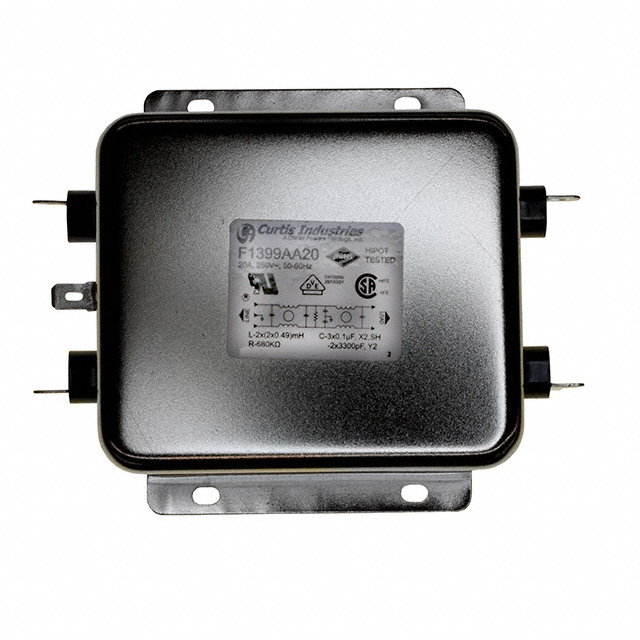

The Curtis Industries F1399AA20 is a single-phase EMI/EMC line filter module designed for power line noise suppression. It features a two-stage filtering architecture to effectively attenuate electromagnetic interference across the input circuit. The unit is rated for a maximum voltage of 250VAC at 50/60Hz and supports a continuous current of 20A. It utilizes quick connect terminals for installation and is specified with a leakage current range between 0.25mA and 0.45mA.

Power Line Filter Modules Feature Summary

• Two-stage filtering design for enhanced noise attenuation
• Quick connect terminal interface for simplified wiring
• Chassis mount configuration for secure physical installation

Power Line Filter Modules Applications

• Industrial equipment power supply inputs
• Commercial machinery EMC compliance
• Power distribution units requiring noise suppression

Power Line Filter Modules Procurement Notes

Verify that the application environment does not require RoHS compliance, as this specific part number lacks confirmed RoHS certification data. Confirm that the 20A current rating and 250VAC voltage limits align with the system's operational parameters. Ensure the chassis mounting style and quick connect terminals are compatible with the existing assembly infrastructure before procurement.

Power Line Filter Modules Selection Notes

Select this component when a robust two-stage EMI filter is required for high-current single-phase applications up to 20A. The chassis mount form factor suits enclosed industrial environments where space efficiency and secure mounting are priorities. Verify that the quick connect termination method matches the available harness or busbar connections in the target design.

Power Line Filter Modules Part Context

This component belongs to the Curtis Industries F1399 series of RFI filters, which offers various current ratings from 1A to 20A. The series provides standard solutions for power line noise reduction. The F1399AA20 specifically addresses higher current demands within this family, maintaining consistent voltage ratings and mounting styles across the product line.

Power Line Filter Modules Replacement Considerations

Consult official Curtis Industries documentation for direct substitutes within the F1399 series with different current ratings. No public third-party cross-reference part numbers are verified for this specific model.
