F1400AA10

Power Line Filter Modules Overview

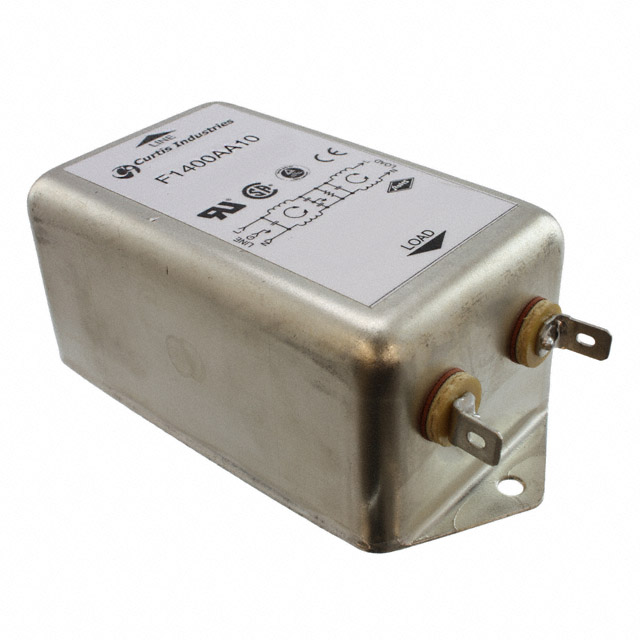

The Curtis Industries F1400AA10 is a single-phase EMC/EMI power line filter designed for chassis mounting. It features a two-stage configuration with quick connect terminals. The component has a rated AC voltage of 250V and operates at 50/60Hz frequencies. It supports a rated current of 10A at 250VAC or 6A at 115VAC, with a current overload capacity of 6 times the rating for 8 seconds.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture providing high insertion loss for switching power supply emissions
• High peak current design capability
• Low-leakage current characteristic

Power Line Filter Modules Applications

• Switching power supply emission suppression
• General purpose EMI/RFI filtering in industrial equipment
• Incoming inspection verification for consistent performance

Power Line Filter Modules Procurement Notes

Verify the specific part number F1400AA10 against official Curtis Industries documentation to confirm ratings and certifications. Ensure compatibility with chassis mounting requirements and quick connect terminal interfaces. Check for active status and RoHS3 compliance before procurement.

Power Line Filter Modules Selection Notes

Select this model for applications requiring single-phase filtering with high peak current handling. The two-stage design is suitable for suppressing emissions from switching power supplies. Verify that the 250VAC rating and 10A current capacity meet system requirements.

Power Line Filter Modules Part Context

This component belongs to the Curtis Industries F1400 series of RFI power line filters. The series includes various configurations for different current and voltage ratings. The F1400AA10 specifically denotes the 10A/250VAC variant with quick connect terminals.

Power Line Filter Modules Replacement Considerations

Consult official Curtis Industries substitution guides for verified alternatives. Generic cross-references may not match the two-stage architecture or peak current specifications.
