F1500AA10

Power Line Filter Modules Overview

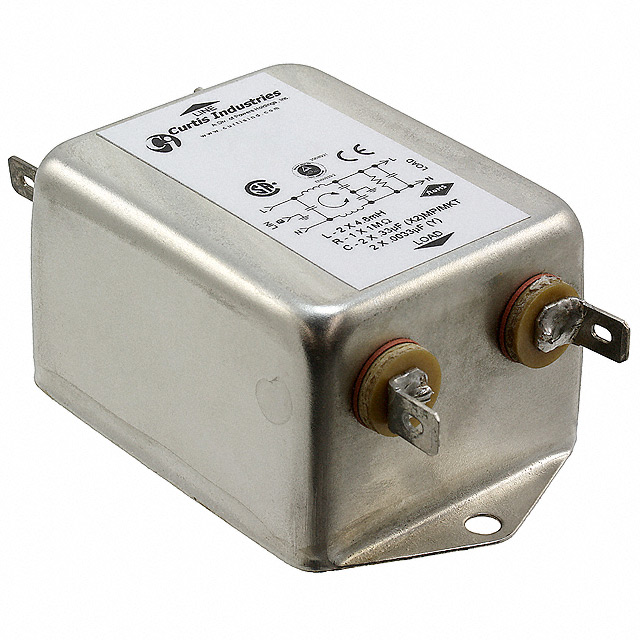

The F1500AA10 is a single-phase EMC/EMI line filter module manufactured by Curtis Industries. It provides electromagnetic interference suppression for power lines with a rated current of 10 A and a voltage rating of 250 V at 50/60 Hz frequencies. The device utilizes a single-stage filtering architecture and features quick-connect terminals for integration into electrical systems.

Power Line Filter Modules Feature Summary

• Single-stage EMI/EMC noise attenuation
• Quick-connect terminal interface

Power Line Filter Modules Applications

• Power supply input filtering
• Industrial equipment noise suppression
• Electromagnetic compatibility enhancement in AC circuits

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version to confirm exact capacitance values and leakage current specifications, as these parameters are critical for compliance with regional electromagnetic emission standards. Ensure the operating environment temperature range aligns with the component's thermal ratings to maintain performance stability over time.

Power Line Filter Modules Selection Notes

Select this component when a compact, single-phase solution is required for low-current applications up to 10 A. The quick-connect design facilitates rapid assembly compared to screw-terminal alternatives. Confirm that the 250 VAC rating matches the system voltage and that the 50/60 Hz frequency specification is compatible with the power source.

Power Line Filter Modules Part Context

This part belongs to Curtis Industries' power line filter module series, designed for industrial and commercial applications requiring basic noise reduction. It serves as a passive component to protect sensitive electronics from conducted interference on AC mains lines.

Power Line Filter Modules Replacement Considerations

Consult official Curtis Industries documentation for verified cross-reference part numbers. Substitutions must match the 10 A current rating, 250 VAC voltage rating, and single-phase configuration to ensure circuit integrity.
