F1700DD30

Power Line Filter Modules Overview

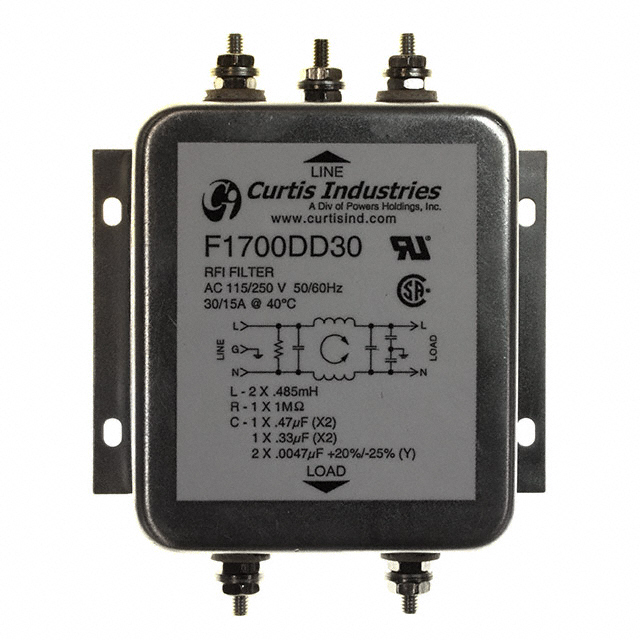

The Curtis Industries F1700DD30 is a single-phase EMI/RFI power line filter module designed for chassis mounting. It supports a current rating of 16A at 250VAC and 30A at 115VAC, operating at 50/60Hz frequencies. The unit features a threaded post connection interface (8-32) and utilizes a single-stage filtering architecture to suppress electromagnetic interference in AC power circuits.

Power Line Filter Modules Feature Summary

• Single-stage EMI/RFI suppression for AC power lines
• Chassis mount installation with threaded post connections
• Dual voltage/current rating capability for 115VAC and 250VAC systems

Power Line Filter Modules Applications

• High-power motor control cabinets
• Industrial machinery power entry modules
• Commercial equipment requiring EMC compliance

Power Line Filter Modules Procurement Notes

Verify the specific current rating requirement against the operating voltage; the component supports 16A at 250VAC or 30A at 115VAC. Confirm chassis mounting dimensions and threaded post specifications (8-32) match the enclosure design. Ensure the application environment does not exceed the rated voltage and frequency parameters to maintain safety certifications.

Power Line Filter Modules Selection Notes

Select this model when a single-stage solution is sufficient for the required attenuation levels. Consider the physical size constraints for chassis mounting. Evaluate if the dual-rating capability fits both 115VAC and 250VAC system architectures within the same product line. Verify that the threaded post termination method aligns with the available busbar or cable lug options.

Power Line Filter Modules Part Context

This component belongs to the Curtis Industries F1700 series of RFI power line filters. The series offers various configurations for single-phase applications, ranging from general-purpose to high-performance filtering solutions. The F1700 series is engineered for industrial machinery control, providing reliable noise suppression for sensitive electronic loads connected to AC power sources.

Power Line Filter Modules Replacement Considerations

Compatible substitutes include other models within the Curtis F1700 series, such as F1700DDxx variants with different current ratings, or cross-referenced single-phase EMI filters from manufacturers like TE Connectivity or Schaffner, provided electrical ratings and mounting interfaces are identical.
