F2M03GXA-S01-R2A

RF Transceiver Modules And Modems Overview

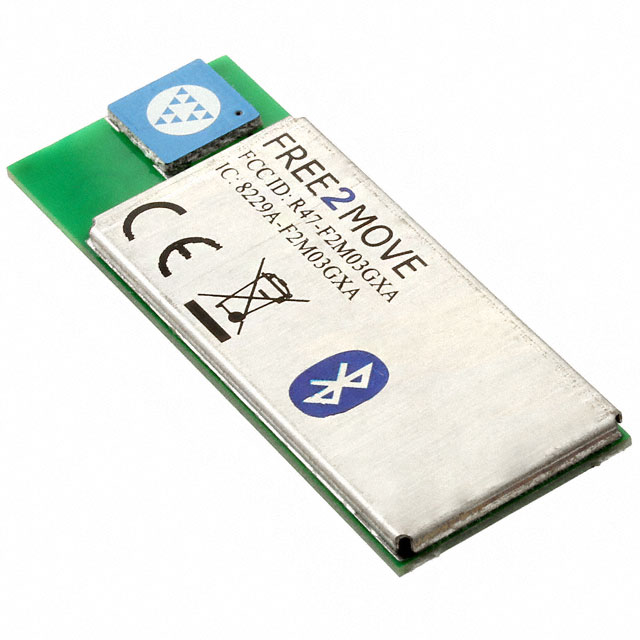

The F2M03GXA-S01-R2A is a Bluetooth v2.0 + EDR transceiver module operating at 2.4GHz, manufactured by Free2Move. It supports Class 1, 2, and 3 transmission power levels and features an integrated chip antenna. The component is designed for surface mount technology (SMD) applications, packaged in tape and reel format. This module provides a fully qualified end-product solution compliant with CE and FCC standards, enabling wireless connectivity for various electronic devices requiring short-range data exchange.

RF Transceiver Modules And Modems Feature Summary

• Supports Bluetooth v2.0 + EDR protocol with integrated chip antenna
• Fully qualified end product with CE and FCC compliance
• Surface mount design for automated assembly integration

RF Transceiver Modules And Modems Applications

• Wireless peripheral connectivity
• Short-range data transfer devices
• Embedded Bluetooth communication systems

RF Transceiver Modules And Modems Procurement Notes

Verify the specific suffix R2A to confirm the tape and reel packaging configuration. Ensure compatibility with existing RF circuit designs regarding impedance matching for the integrated chip antenna. Confirm that the target application environment meets the thermal and mechanical requirements for surface mount components. Check current availability status as supply chain conditions may affect lead times.

RF Transceiver Modules And Modems Selection Notes

Select this module when Bluetooth v2.0 + EDR functionality is required with a compact SMD footprint. The integrated chip antenna simplifies PCB layout compared to external antenna solutions. Consider the supported transmission classes if range optimization is critical for the specific device architecture. Verify regulatory certification requirements against the module's pre-qualified status.

RF Transceiver Modules And Modems Part Context

This part belongs to the Free2Move F2M03GX series of extended range Bluetooth modules. The GXA variant specifically denotes the version equipped with an integrated high-output chip antenna, distinguishing it from other antenna options within the same family. It serves as a complete radio solution for developers integrating Bluetooth capabilities without designing custom RF front-ends.

RF Transceiver Modules And Modems Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Evaluate modules within the same F2M03GX family or newer Bluetooth versions only after verifying pinout and firmware compatibility.
