F3480T050

Power Line Filter Modules Overview

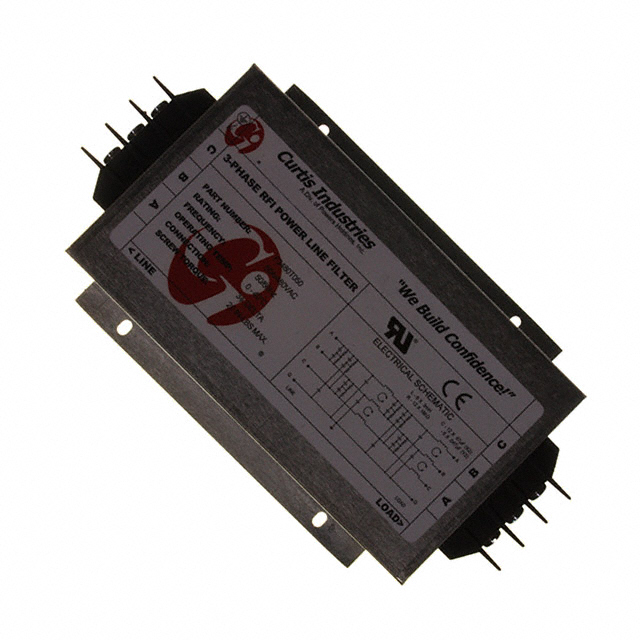

The Curtis Industries F3480T050 is a three-phase (Delta) EMC/EMI power line filter module designed for chassis mounting. It provides noise suppression for electrical systems operating at 480VAC with a rated current of 50A at 50/60Hz. The unit utilizes a terminal block termination style and is constructed to meet RoHS compliance standards, ensuring suitability for industrial environments requiring robust electromagnetic interference mitigation.

Power Line Filter Modules Feature Summary

• Provides effective EMI/RFI filtering for three-phase Delta power lines
• Designed for direct chassis mounting to save panel space
• Utilizes terminal block connections for secure wiring integration

Power Line Filter Modules Applications

• Industrial motor drive systems
• Three-phase power distribution panels
• Heavy machinery control cabinets

Power Line Filter Modules Procurement Notes

Verify the specific part number suffix against official Curtis Industries documentation to confirm exact electrical ratings and physical dimensions. Ensure compatibility with existing chassis mounting holes and terminal block configurations before procurement. Cross-reference datasheets for thermal management requirements during installation.

Power Line Filter Modules Selection Notes

Select this model when three-phase Delta filtering is required for 480VAC systems carrying up to 50A. Consider chassis mount constraints and available panel space. Verify that the terminal block interface matches existing wiring harnesses and that the enclosure rating meets environmental conditions.

Power Line Filter Modules Part Context

This component belongs to the F3480 series of power line filter modules manufactured by Curtis Industries. The series specializes in custom and standard EMI/RFI filtration solutions for industrial applications. Curtis Industries has a long history of producing terminal blocks and filter subsystems since 1935.

Power Line Filter Modules FAQ

What phase configuration does the F3480T050 support?

It supports three-phase Delta configuration.

Is the F3480T050 compliant with environmental regulations?

Yes, it is lead-free and RoHS compliant.
