F3600T016

Power Line Filter Modules Overview

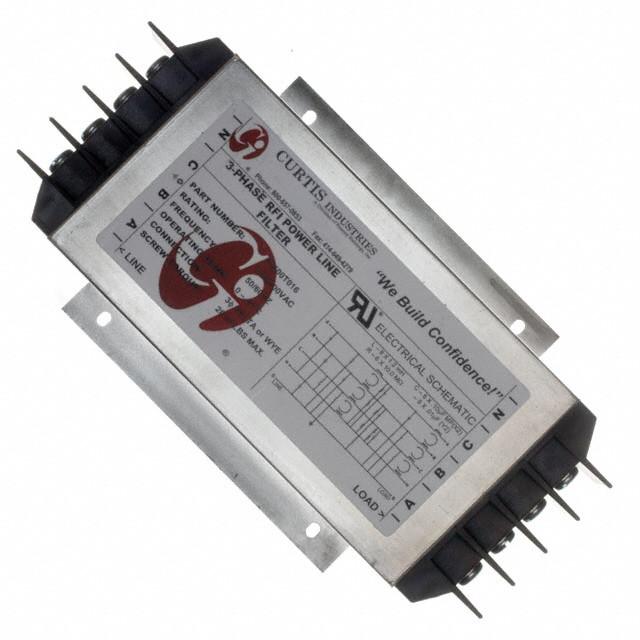

The Curtis Industries F3600T016 is a three-phase (Wye) EMC/EMI power line filter module designed for chassis mounting. It features a two-stage filtering architecture to suppress electromagnetic interference in industrial power systems. The unit is rated for a continuous current of 16 A and operates at voltages up to 600 VAC. Connection is facilitated via terminal block interfaces, ensuring secure integration into electrical panels. This component serves as a general-purpose solution for noise reduction in AC power distribution networks.

Power Line Filter Modules Feature Summary

• Two-stage EMI/RFI filtering architecture
• Terminal block connection interface
• Chassis mount design

Power Line Filter Modules Applications

• Industrial power distribution panels
• Three-phase motor drive systems
• General purpose electrical equipment requiring EMI suppression

Power Line Filter Modules Procurement Notes

Verify the specific part number F3600T016 against official Curtis Industries documentation to confirm the 16A rating and Wye configuration. Ensure compatibility with existing chassis mounting dimensions and terminal block specifications before procurement. Cross-reference datasheet revisions to guarantee compliance with current regulatory standards.

Power Line Filter Modules Selection Notes

Select this model when a dedicated two-stage filter is required for three-phase Wye systems operating at 600VAC. Confirm that the 16A current rating aligns with the load requirements. Evaluate space constraints for chassis mounting and verify terminal block accessibility for wiring installation within the enclosure.

Power Line Filter Modules Part Context

This component belongs to the Curtis Industries F3600 series of power line filter modules. The series offers various current ratings and voltage configurations for different industrial applications. The F3600T016 specifically addresses the needs of lower-current three-phase applications requiring robust EMI suppression capabilities.

Power Line Filter Modules Replacement Considerations

Consult official Curtis Industries substitution guides for verified equivalent models. Do not assume cross-compatibility with other manufacturers' filters without verifying electrical parameters and physical dimensions.
