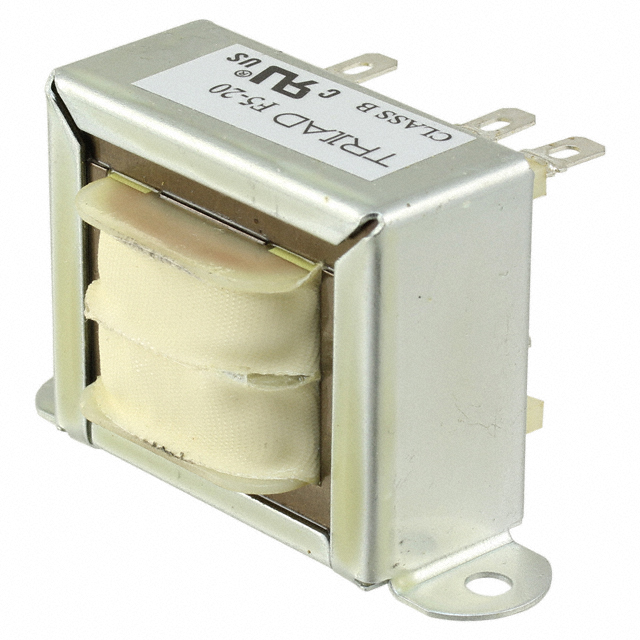

F5-20

$8.51

Description：PWR XFMR LAMINATED 12VA CHAS MT
Series：Quick Pack
Mfr：Triad Magnetics
Package：Bulk

SKU:cc327d3c0508 Category: Power Transformers Brand: Triad Magnetics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

F5-20 is listed in the Power Transformers range at ChipApex. The manufacturer field lists Triad Magnetics. Its product description is PWR XFMR LAMINATED 12VA CHAS MT. Review the specifications below when checking this part for your BOM.

Power Transformers specifications for F5-20

Description：PWR XFMR LAMINATED 12VA CHAS MT
Series：Quick Pack
Mfr：Triad Magnetics
Package：Bulk
Type：Laminated Core
Voltage - Primary：115V
Voltage - Secondary (Full Load)：20V
Current - Output (Max)：600mA
Primary Winding(s)：Single
Secondary Winding(s)：Single
Center Tap：Yes
Power - Max：12VA
Mounting Type：Chassis Mount
Termination Style：Solder, Quick Connect - 0.187" (4.7mm)
Size / Dimension：71.42mm L x 34.93mm W
Height - Seated (Max)：41.28mm
Voltage - Isolation：2500VAC
Weight：0.7 lb (317.51 g)

Power Transformers datasheet and documents for F5-20

F5-20

Power Transformers Overview

The Triad Magnetics F5-20 is an industrial power transformer featuring a bobbin-wound core design. It provides a secondary output of 20.0Vct at 0.600A with a 115V primary input. The unit has a 12 VA power rating and utilizes quick connect terminals for electrical interfacing. Designed for chassis mounting, the transformer measures 2.81 inches in length, 1.38 inches in width, and 1.63 inches in height. It weighs approximately 317.5 grams and carries UL/cUL certification.

Power Transformers Feature Summary

Bobbin wound construction for reliable performance
Quick connect terminal configuration for simplified wiring
Chassis mounting style for secure installation

Power Transformers Applications

Industrial control systems
General purpose power supply circuits
Equipment requiring isolated AC voltage conversion

Power Transformers Procurement Notes

Verify that the required mounting hardware matches the chassis specifications. Confirm that the quick connect terminal dimensions align with the mating connectors in the target assembly. Ensure the operating environment does not exceed the thermal limits defined in the official datasheet. Check for specific UL/cUL listing requirements relevant to the final equipment application.

Power Transformers Selection Notes

Select this component when a 12 VA isolation transformer is needed for 115V primary applications. The F5-20 is suitable for designs prioritizing standard chassis mounting over PCB integration. Consider the physical footprint constraints relative to the 2.81-inch length. Evaluate if the quick connect interface meets the system's wiring density requirements compared to solder pin alternatives.

Power Transformers Part Context

The F5-20 belongs to the Triad Magnetics Quick Pack series, which focuses on reducing size and weight for specific VA ratings. This series includes variants like the F5-12 and F5-56, offering different voltage and current configurations while maintaining similar mounting and connection styles. These transformers are categorized under industrial control transformers within the broader power transformer product line.
