F5100CG03

Power Line Filter Modules Overview

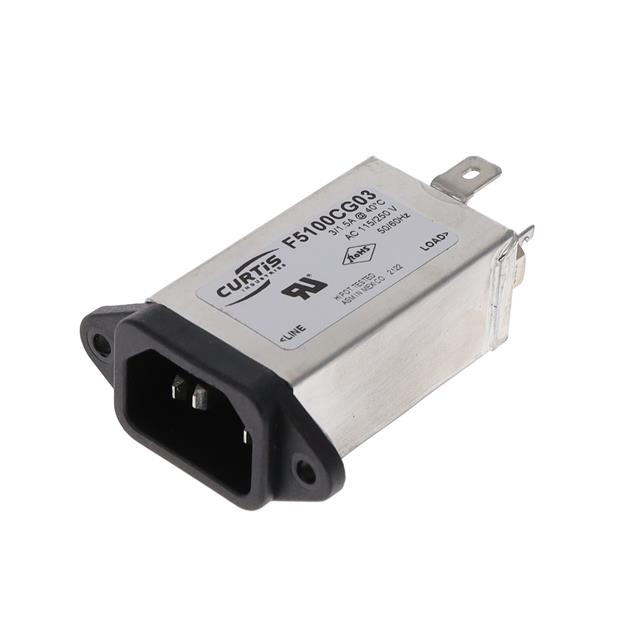

The Curtis Industries F5100CG03 is a single-phase EMC/EMI line filter module designed for AC power line protection. It features a rated voltage of 250VAC at 50-60Hz and a current rating of 3A. The unit utilizes an IEC 320-C14 panel receptacle interface with quick-connect terminals for circuit integration. This component provides single-stage filtering to mitigate electromagnetic interference in low-power electronic systems.

Power Line Filter Modules Feature Summary

• Single-stage EMI/RFI noise suppression for AC power lines
• Integrated IEC 320-C14 receptacle for direct equipment connection
• Quick-connect terminal configuration for simplified assembly

Power Line Filter Modules Applications

• Low-power electronic equipment requiring EMI mitigation
• Industrial control panels with sensitive instrumentation
• Medical devices adhering to electromagnetic compatibility standards

Power Line Filter Modules Procurement Notes

Verify the specific datasheet revision to confirm leakage current specifications, which typically range between 0.50 mA and 1.20 mA for this series. Ensure the receiving equipment supports the IEC 320-C14 connector type and that the PCB or wiring harness accommodates the quick-connect terminal style. Confirm compliance requirements such as UL or CE marking if applicable to the final assembly environment.

Power Line Filter Modules Selection Notes

Select this model when a compact, integrated solution combining a standard power inlet with EMI filtering is required. The 3A rating suits applications where space constraints prevent separate filter and socket installation. Consider thermal management needs within the enclosure, as internal components may generate heat under continuous load conditions near the maximum current rating.

Power Line Filter Modules Part Context

Curtis Industries manufactures electrical interconnection components, including terminal blocks and power line filters. The F5100 series represents their modular approach to EMI/RFI suppression, offering standardized form factors for easy integration into various industrial and commercial electronic enclosures without custom design efforts.

Power Line Filter Modules Replacement Considerations

Cross-reference with other Curtis Industries models in the F5100 series for alternative current ratings or terminal configurations. Verify mechanical footprint compatibility before substituting with generic EMI filters, as the integrated IEC 320-C14 receptacle is a unique structural feature not found in standalone filter modules.
