F66T3RTX

Overview

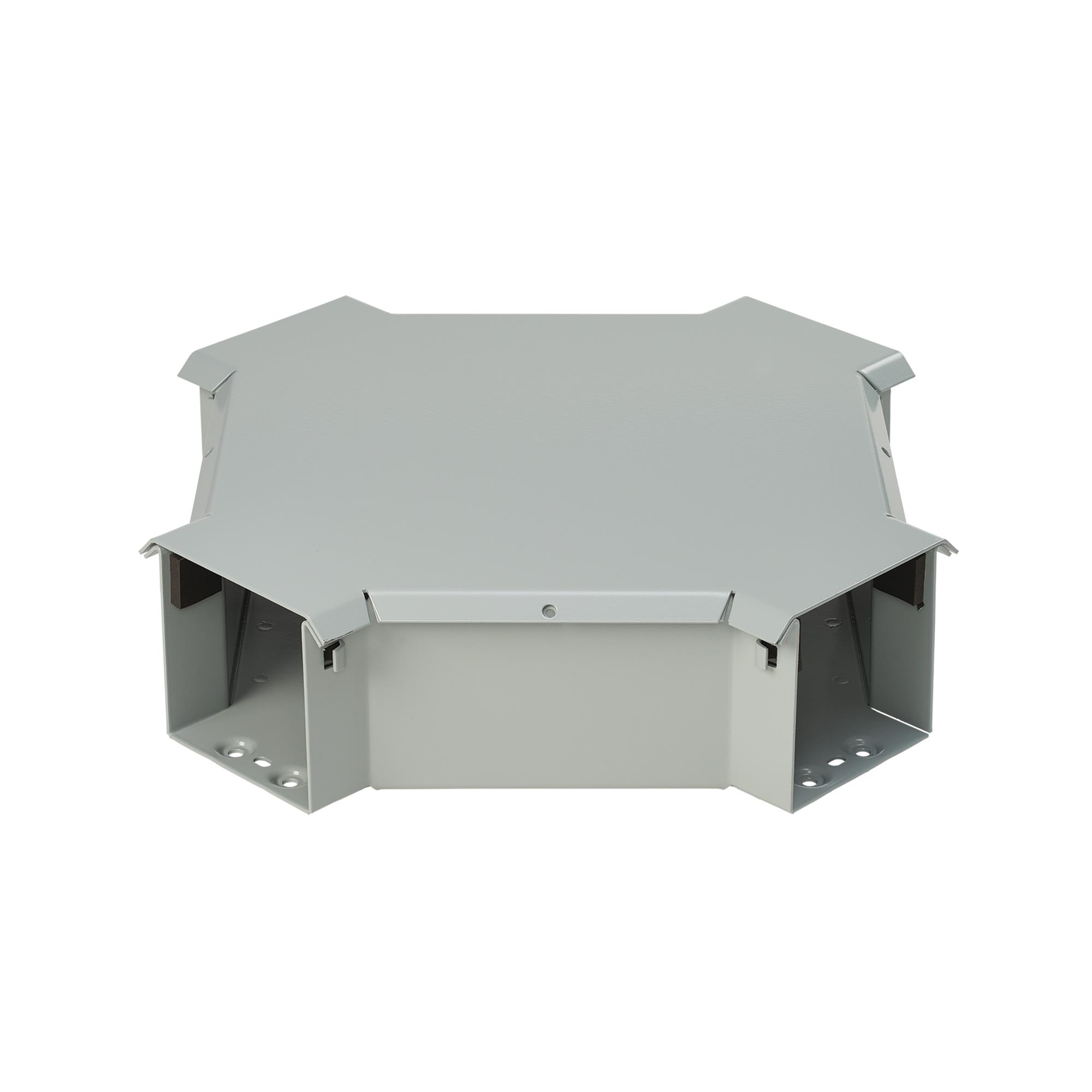

The F66T3RTX is a 90-degree elbow, cross, or tee fitting designed for use with 6.00 x 6.00 inch NEMA 3R lay-in wireway and trough systems. Constructed from 14/16 gauge steel, the component features a galvanized base with an ANSI 61 gray polyester powder coated finish to ensure durability in outdoor-indoor environments. It holds UL 870 and CSA approvals, confirming compliance with relevant safety standards for electrical installations.

Feature Summary

• Versatile configuration allows usage as a 90-degree elbow, flush tee, or four-branch cross connector
• Galvanized steel construction with gray polyester powder coating provides corrosion resistance
• Compatible with standard 6x6 inch NEMA 3R lay-in wireway systems

Applications

• Connecting branches in 6x6 inch NEMA 3R lay-in wireway systems
• Outdoor and indoor electrical cable management infrastructure
• Creating junction points for four-way wireway routing

Procurement Notes

Verify that the specified wireway system matches the required 6.00 x 6.00 inch dimensions before procurement. Confirm that the installation environment aligns with NEMA 3R ratings for protection against rain and sleet. Ensure compatibility with existing galvanized steel components to maintain consistent finish and structural integrity across the wiring pathway.

Selection Notes

Select this component when a multi-directional connection point is required within a 6x6 inch wireway network. The design supports conversion between elbow and tee configurations by adding specific hardware. Choose this part for applications requiring UL 870 and CSA certified fittings in corrosive or wet locations where NEMA 3R protection is mandated.

Part Context

This fitting belongs to the Hoffman line of electrical enclosure accessories, specifically engineered for lay-in wireway systems. It serves as a critical interconnection element in industrial and commercial power distribution networks. The product ensures secure and standardized routing of electrical cables through complex panel layouts while maintaining environmental sealing requirements.

Replacement Considerations

No public confirmed substitute part numbers are available.
