F8890EOUTGV

Overview

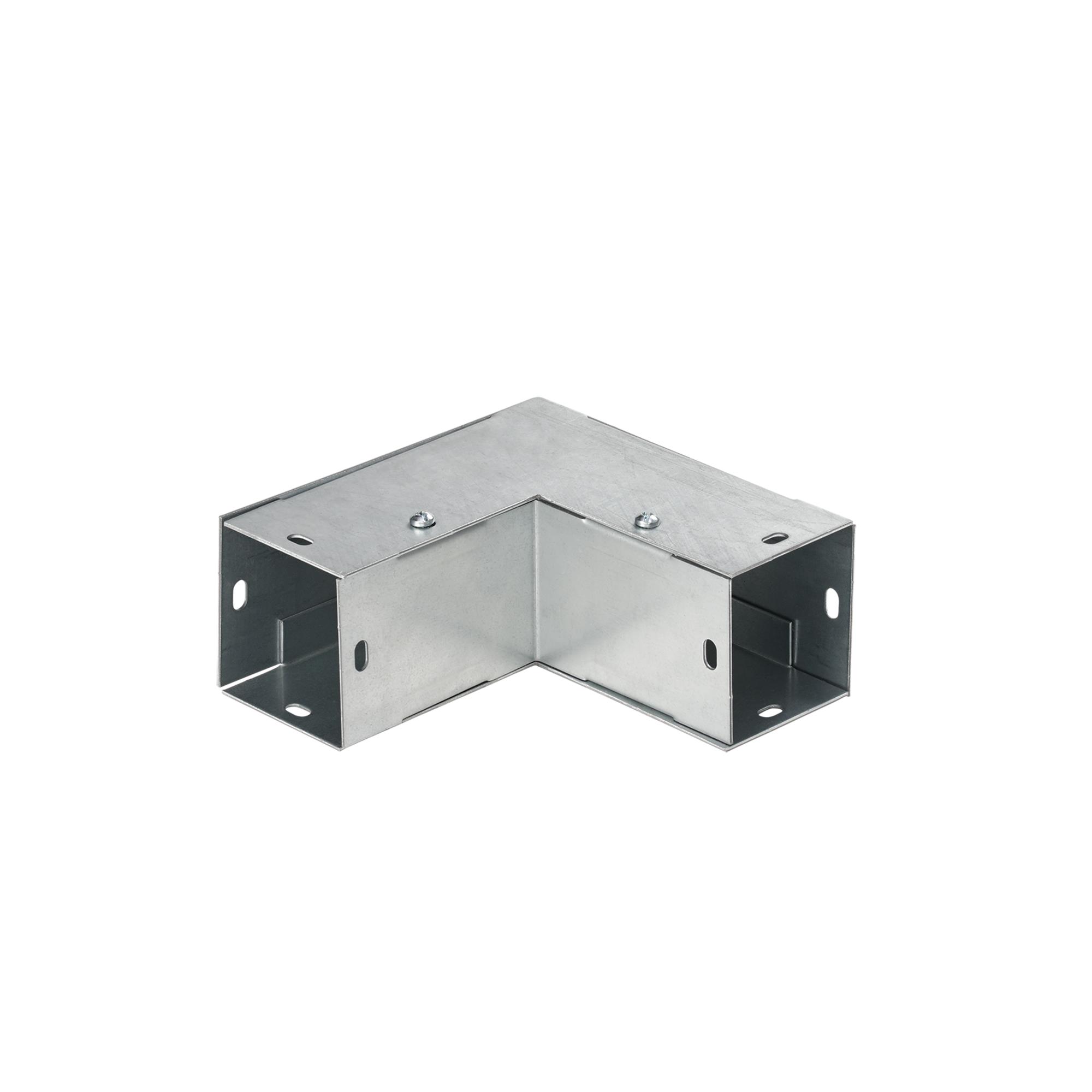

The F8890EOUTGV is an 8-inch by 8-inch galvanized steel elbow fitting designed for indoor lay-in wireway systems. It features a 90-degree outside opening configuration, allowing for continuous cable runs with directional changes. The component is constructed from 16/14 gauge steel with a galvanized finish to provide corrosion resistance. It complies with UL 870, CUL, and CSA C22.2 standards and meets NEMA Type 1 requirements for indoor use. The design includes removable top, bottom, and outside covers to facilitate easy cable installation and maintenance.

Feature Summary

• Galvanized steel construction for durability and corrosion resistance
• Removable top, bottom, and outside covers for simplified cable management
• Compliant with UL 870, CUL, and CSA C22.2 safety standards
• Designed for continuous run applications requiring 90-degree turns

Applications

• Indoor electrical wiring systems requiring directional changes
• Continuous cable runs in industrial or commercial settings
• Lay-in wireway installations where NEMA Type 1 protection is sufficient

Procurement Notes

Verify that the application environment is strictly indoor, as this component is rated NEMA Type 1 and lacks weatherproofing. Confirm compatibility with existing 8x8 inch wireway systems before procurement. Ensure that local electrical codes accept UL 870 and CSA C22.2 approvals for the intended installation. Check for any specific gauge requirements, as the unit utilizes 16/14 gauge steel.

Selection Notes

Select this component when a 90-degree turn is required within an indoor wireway system. The outside opening design is suitable for configurations where access to the interior corner is needed. Consider the galvanized finish for environments with moderate humidity but no direct exposure to weather. Ensure the surrounding wireway components match the 8x8 inch dimensions and material specifications for proper fit.

Part Context

This elbow fitting is part of Hoffman's line of cable management accessories, specifically designed to integrate with their standard lay-in wireway products. It serves as a critical connector for routing cables around corners in electrical distribution networks. The product is manufactured by nVent Hoffman, a provider of enclosures and cable management solutions.

Replacement Considerations

Ensure replacement units maintain the 8x8 inch cross-section and 90-degree angle specification. Verify that substitute fittings also meet UL 870 and CSA C22.2 standards. Match the galvanized finish and 16/14 gauge steel construction to preserve structural integrity and corrosion resistance.

FAQ

What is the primary function of the F8890EOUTGV?

It provides a 90-degree connection point for indoor lay-in wireway systems, enabling continuous cable runs to change direction.

Is this component suitable for outdoor use?

No, it is rated NEMA Type 1 and is designed exclusively for indoor environments without weather protection.
