F88W36

Overview

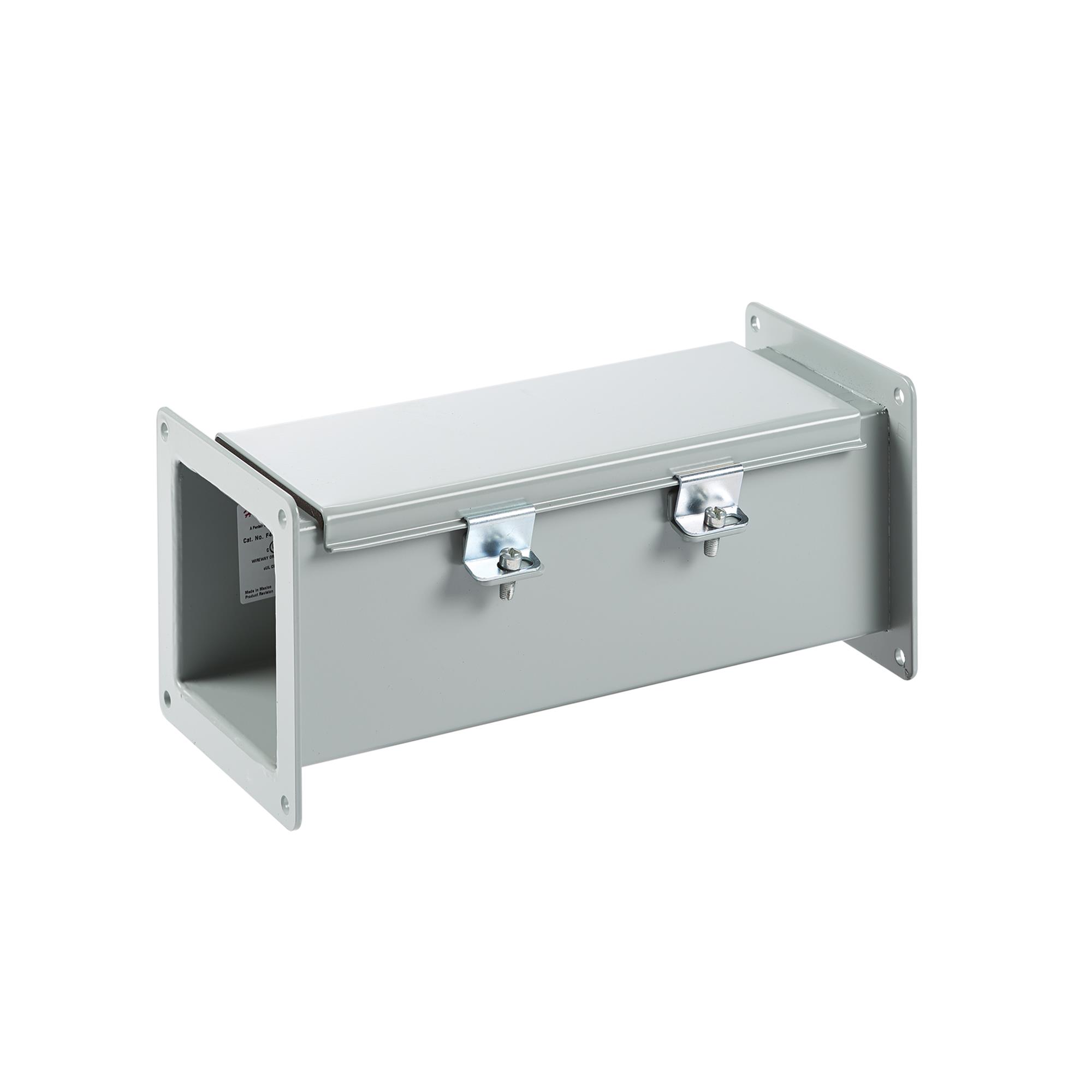

The Hoffman Enclosures F88W36 is a straight section wireway designed for indoor cable management. It features a feed-through configuration with a hinged cover, constructed from 14-gauge steel body and cover with 10-gauge end flanges. The unit measures 8.00 inches by 8.00 inches in cross-section and 36.00 inches in length. It carries NEMA Type 12 and UL-508A ratings, providing dust protection for enclosed wires and cables.

Feature Summary

• Feed-through design allows continuous routing of wires and cables through the enclosure run.
• Hinged cover facilitates easy access to internal wiring for installation and maintenance.
• Constructed from steel with ANSI 61 gray polyester powder paint finish for durability.

Applications

• Enclosing wire and cable in indoor wireway runs
• Dust protection applications requiring NEMA Type 12 compliance
• Industrial control panel cable management

Procurement Notes

Verify that the application environment is strictly indoor, as this model holds only NEMA Type 12 ratings. Confirm that the required cable fill does not exceed the capacity of the 8x8 inch cross-section. Ensure mounting hardware is compatible with the steel construction and specified dimensions before finalizing the order.

Selection Notes

Select this model when a straight, feed-through path is required for cable routing in controlled indoor environments. The 36-inch length provides standard modular extension capabilities. Consider the 14-gauge steel thickness for structural integrity in typical industrial settings where heavy mechanical impact is not expected.

Part Context

This component belongs to the nVent Hoffman F88W series of wireways. These systems are engineered for organized cable management within electrical enclosures and control panels. The F88W36 represents a standard straight segment used to extend cable pathways between junction points or equipment interfaces.

FAQ

What is the material gauge of the wireway body?

The body and cover are made from 14-gauge steel, while the end flanges are constructed from 10-gauge steel.

Is this wireway suitable for outdoor use?

No, it is rated NEMA Type 12, which is intended for indoor use to protect against dust and dripping non-corrosive liquids.
