F88WE90

Overview

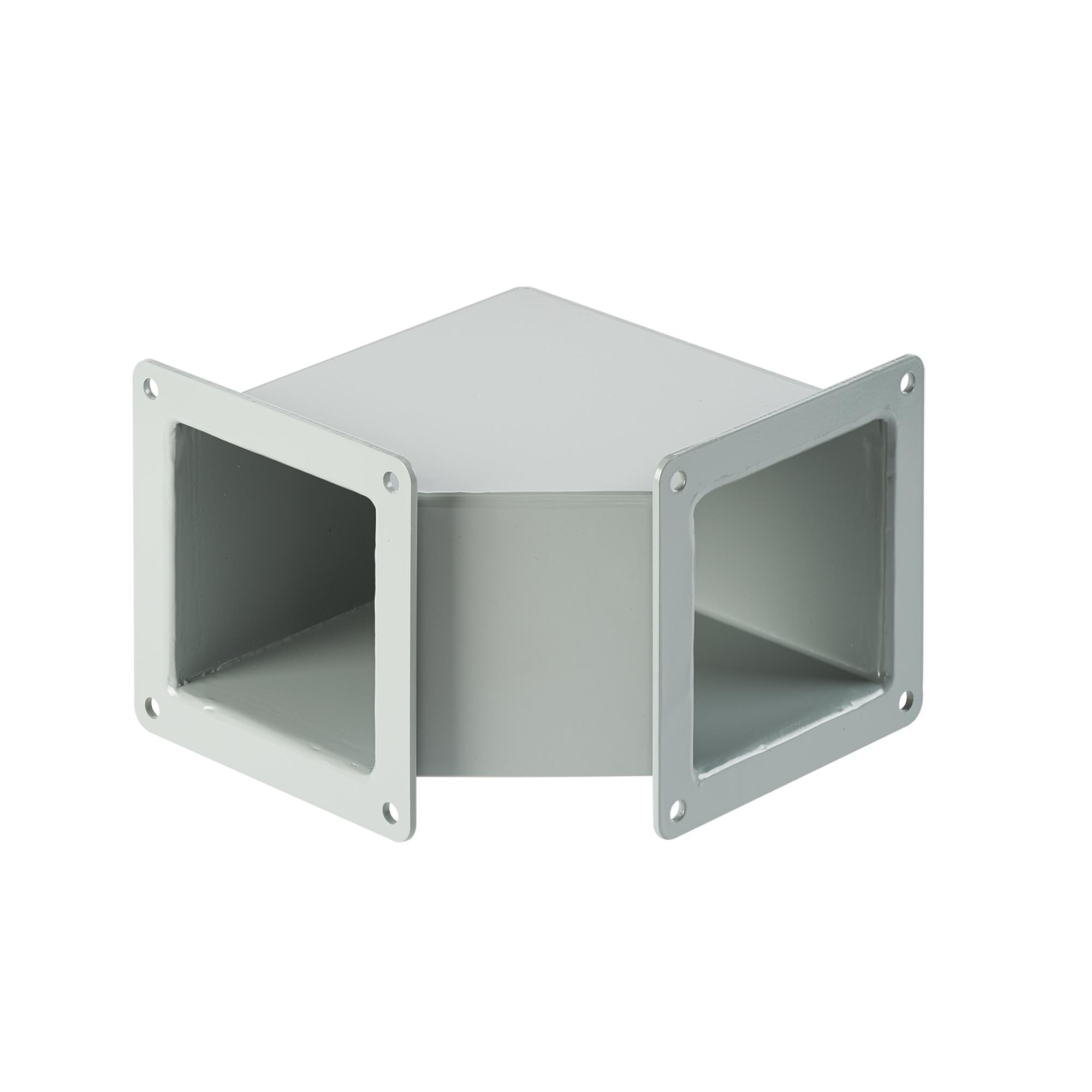

The F88WE90 is a 90-degree elbow wireway fitting manufactured by Hoffman Enclosures, Inc. It features an 8-inch by 8-inch internal cross-section and is constructed from mild steel with a thickness of 14 gauge for the body and 10 gauge for the end flange. The component is finished with an ANSI 61 gray polyester powder paint. It is designed for indoor applications and meets UL 870 standards.

Feature Summary

• Provides a 90-degree bend for continuous wireway runs
• Constructed from mild steel with specified gauge thicknesses
• Features a durable gray polyester powder coated finish

Applications

• Indoor feed-through wireway systems
• Continuous cable routing with directional changes
• Industrial electrical infrastructure management

Procurement Notes

Verify that the required bend angle matches the 90-degree specification. Confirm the internal dimensions are exactly 8 inches by 8 inches to ensure compatibility with existing straight sections. Check that the material is mild steel and the finish is gray powder coat. Ensure the application environment is indoor only, as this rating may not suit outdoor or harsh conditions.

Selection Notes

Select this component when a rigid 90-degree transition is needed in an indoor wiring path. Ensure the mating wireway segments share the same 8x8 inch dimensions. Verify that the mild steel construction and NEMA Type 12 rating align with the environmental protection requirements of the installation site.

Part Context

This part belongs to the Hoffman F20 series of wireway accessories. It serves as a connector within a larger cable management system, allowing wires to change direction while maintaining physical protection. It is distinct from enclosures like the ASR series or transparent doors like the ADAB series.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Ensure any replacement maintains the 8x8 inch internal size and 90-degree geometry.
