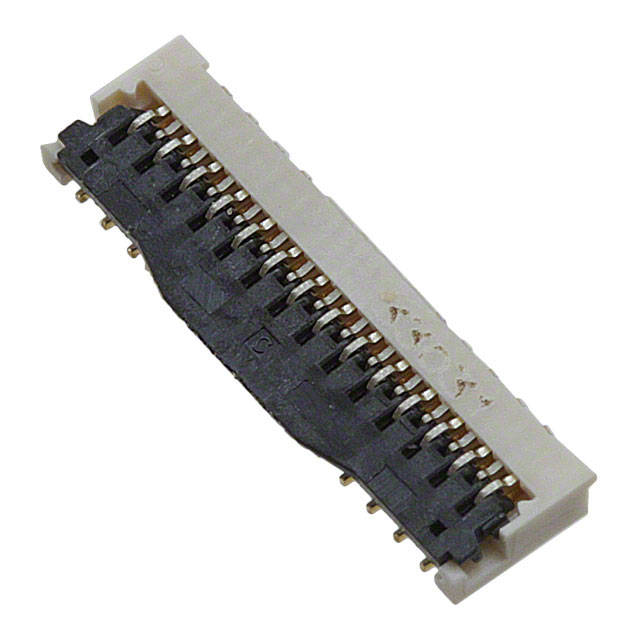

FFC, FPC (Flat Flexible) Connector Assemblies FB10S027JA2R6000 product image

FB10S027JA2R6000

Description：CONN FPC BOTTOM 27POS 0.3MM R/A
Series：FB10
Mfr：JAE Electronics
Package：Tape & Reel (TR)

SKU:41088173b30b Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: JAE Electronics

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FB10S027JA2R6000 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists JAE Electronics. Its product description is CONN FPC BOTTOM 27POS 0.3MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for FB10S027JA2R6000

Description：CONN FPC BOTTOM 27POS 0.3MM R/A
Series：FB10
Mfr：JAE Electronics
Package：Tape & Reel (TR)
Flat Flex Type：FPC
Mounting Type：Surface Mount, Right Angle
Connector/Contact Type：Contacts, Bottom
Number of Positions：27
Pitch：0.012" (0.30mm)
Termination：Solder
FFC, FCB Thickness：0.20mm
Height Above Board：0.035" (0.88mm)
Locking Feature：Flip Lock
Cable End Type：Tabbed or Tapered
Contact Material：Phosphor Bronze
Contact Finish：Gold
Housing Material：Plastic
Actuator Material：Plastic
Features：Zero Insertion Force (ZIF)
Voltage Rating：50V
Operating Temperature：-40°C ~ 85°C
Material Flammability Rating：-
