FBMH4525HM102NT

Chip Ferrite Bead Overview

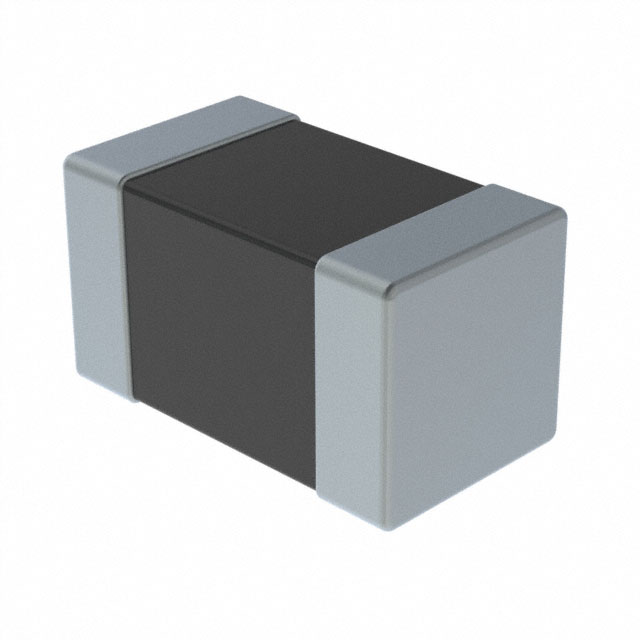

The FBMH4525HM102NT is a single-channel ferrite chip bead from the Taiyo Yuden FB series, designed for power line applications. It features an 1810 (4525 metric) surface-mount package with dimensions of 4.5 mm length, 2.5 mm width, and 2.5 mm height. The component provides an impedance of 1 kOhms at a test frequency of 100 MHz, with a tolerance of 30%. It supports a maximum DC current of 3 A and has a maximum DC resistance of 60 mOhms. The device operates within a temperature range of -40°C to +125°C and is shielded.

Chip Ferrite Bead Feature Summary

• Designed specifically for power line filtering applications
• Shielded construction to minimize electromagnetic interference
• High current handling capability suitable for power circuits

Chip Ferrite Bead Applications

• Power line noise suppression in electronic devices
• EMI filtering in automotive-grade equipment
• Signal integrity management in industrial control systems

Chip Ferrite Bead Procurement Notes

Verify the specific ordering suffix and packaging configuration required for your production needs. Confirm that the component meets all relevant regulatory standards, such as RoHS compliance, for your target market. Ensure that the supplier provides valid traceability documentation and original manufacturer certification to guarantee part authenticity and quality assurance during procurement.

Chip Ferrite Bead Selection Notes

Select this component when high current capacity and significant impedance at 100 MHz are required for power lines. The 1810 package offers a balance between current handling and board space. Consider the low DC resistance to minimize voltage drop and power loss in high-current paths. Verify thermal performance requirements against the specified operating temperature range before integration into the design.

Chip Ferrite Bead Part Context

This ferrite bead belongs to the FB series M Type, which includes chip bead inductors optimized for power lines. The series is characterized by its ability to withstand harsh conditions, making it suitable for automotive and industrial applications. Taiyo Yuden utilizes proprietary raw materials and manufacturing technologies to ensure consistent performance and reliability across the product line.

Chip Ferrite Bead Replacement Considerations

LSMGA452525T102NG is listed as a parameter-equivalent substitute. Verify mechanical and electrical compatibility before replacement.
