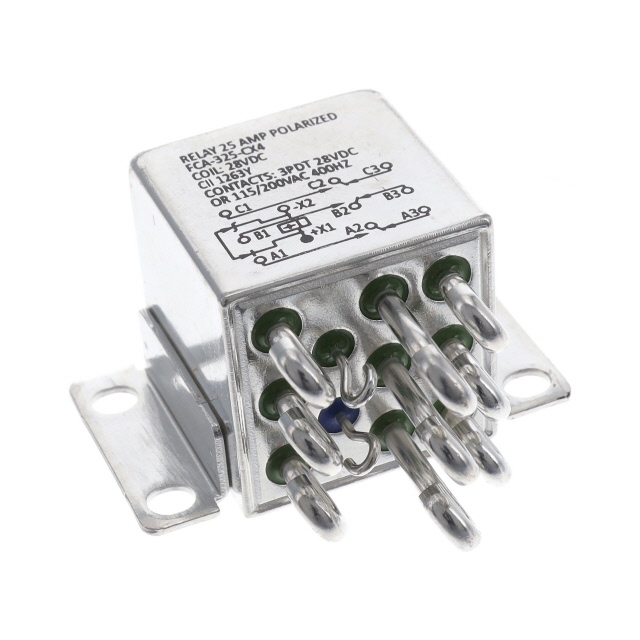

FCA-325-CX4

FCA-325-CX4 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Aerospace, Defense and Marine. Its product description is RELAY GEN PURPOSE 3PDT 25A 28V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for FCA-325-CX4

• Description：RELAY GEN PURPOSE 3PDT 25A 28V
• Series：FCA-325, CII
• Mfr：TE Connectivity Aerospace, Defense and Marine
• Package：Bulk
• Mounting Type：Chassis Mount
• Coil Voltage：28VDC
• Contact Form：3PDT (3 Form C)
• Contact Rating (Current)：25 A
• Switching Voltage：115VAC, 28VDC - Max
• Load - Max Switching：2875VA, 700W
• Coil Current：71.8 mA
• Coil Type：Non Latching
• Features：Diode
• Termination Style：Solder Hook
• Seal Rating：Sealed - Hermetically
• Coil Insulation：-
• Must Operate Voltage：13.5 VDC
• Must Release Voltage：2.3 VDC
• Operating Temperature：-70°C ~ 125°C
• Contact Material：Silver Cadmium Oxide (AgCdO), Gold (Au)
• Approval Agency：-
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：15 ms
• Release Time：15 ms

Power Relays, Over 2 Amps datasheet and documents for FCA-325-CX4
