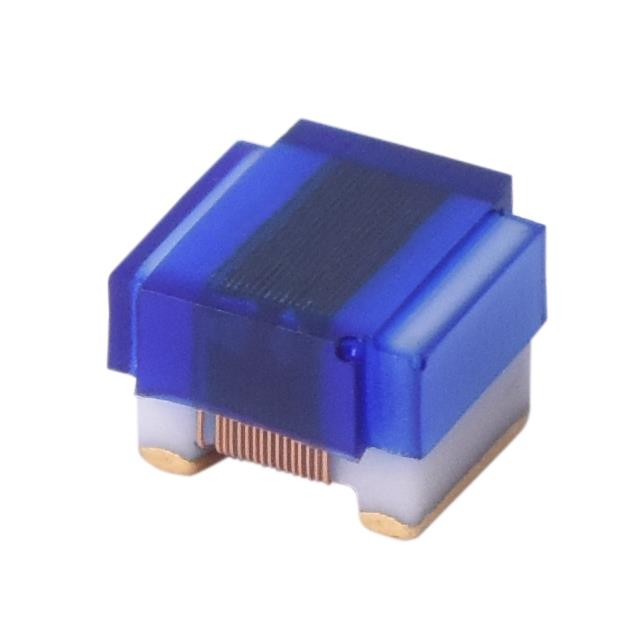

FCBA1-1008F-4R3J

FCBA1-1008F-4R3J is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Signal Transformer. Its product description is FIXED IND 4300NH 260MA 3.8 MOHM. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for FCBA1-1008F-4R3J

• Description：FIXED IND 4300NH 260MA 3.8 MOHM
• Series：FCBA1-1008
• Mfr：Signal Transformer
• Package：Tape & Reel (TR)
• Type：Wirewound
• Material - Core：Ferrite
• Inductance：4.3 µH
• Tolerance：±5%
• Current Rating (Amps)：260 mA
• Current - Saturation (Isat)：-
• Shielding：Unshielded
• DC Resistance (DCR)：3.8Ohm Max
• Q @ Freq：18 @ 25MHz
• Frequency - Self Resonant：60MHz
• Ratings：-
• Operating Temperature：-40°C ~ 125°C
• Inductance Frequency - Test：7.9 MHz
• Mounting Type：Surface Mount
• Package / Case：1008 (2520 Metric)
• Supplier Device Package：1008
• Size / Dimension：0.115" L x 0.110" W (2.92mm x 2.79mm)
• Height - Seated (Max)：0.083" (2.10mm)
• Features：-

Fixed Inductors datasheet and documents for FCBA1-1008F-4R3J
