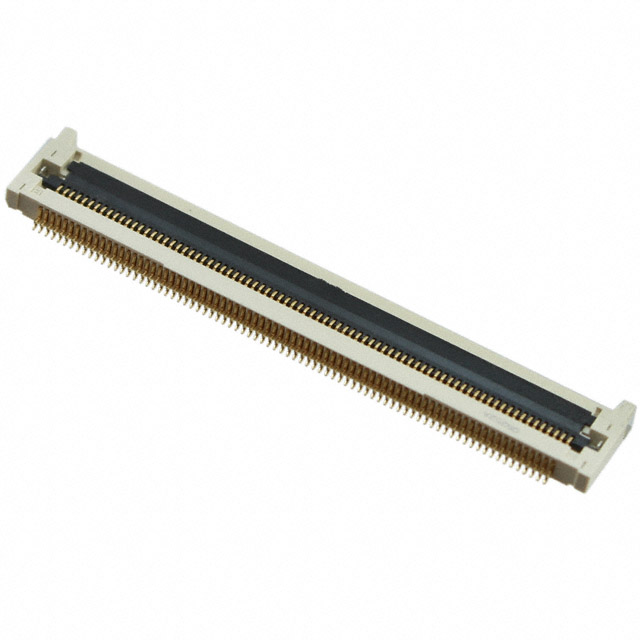

FFC, FPC (Flat Flexible) Connector Assemblies FF0380SA1 product image

FF0380SA1

$9.61
  • Description：CONN FPC BOTTOM 80POS 0.5MM R/A
  • Series：FF03
  • Mfr：JAE Electronics
  • Package：Strip

SKU:322dde954427 Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　
ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

FF0380SA1 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists JAE Electronics. Its product description is CONN FPC BOTTOM 80POS 0.5MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for FF0380SA1

  • Description：CONN FPC BOTTOM 80POS 0.5MM R/A
  • Series：FF03
  • Mfr：JAE Electronics
  • Package：Strip
  • Flat Flex Type：FPC
  • Mounting Type：Surface Mount, Right Angle
  • Connector/Contact Type：Contacts, Bottom
  • Number of Positions：80
  • Pitch：0.020" (0.50mm)
  • Termination：Solder
  • FFC, FCB Thickness：0.30mm
  • Height Above Board：0.079" (2.00mm)
  • Locking Feature：Rotary Lock
  • Cable End Type：Straight
  • Contact Material：Copper Alloy
  • Contact Finish：Gold
  • Housing Material：Liquid Crystal Polymer (LCP)
  • Actuator Material：Polyamide (PA), Nylon, Glass Filled
  • Features：Zero Insertion Force (ZIF)
  • Voltage Rating：50V
  • Operating Temperature：-40°C ~ 85°C
  • Material Flammability Rating：-

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for FF0380SA1

FF0380SA1
