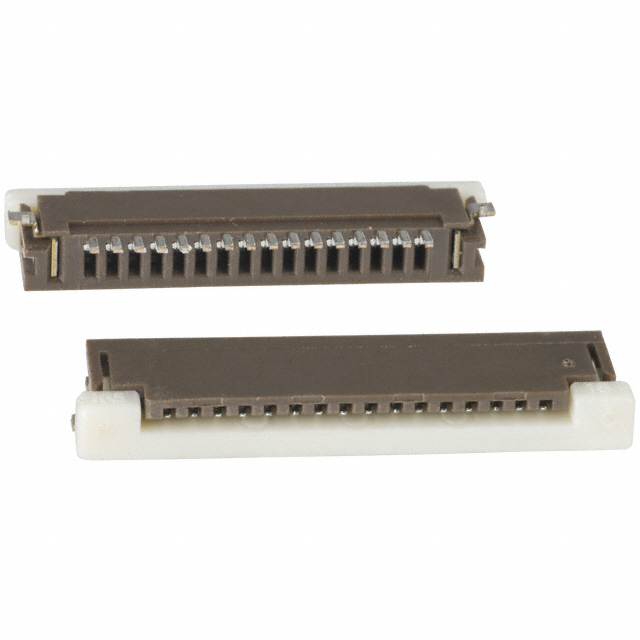

FFC, FPC (Flat Flexible) Connector Assemblies FH10A-16S-1SHB product image

FH10A-16S-1SHB

$1.04
  • Description：CONN FFC FPC TOP 16POS 1MM R/A
  • Series：FH10A
  • Mfr：Hirose Electric Co Ltd
  • Package：Tube

SKU:fd2e4bb57a2e Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　
ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

FH10A-16S-1SHB is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Hirose Electric Co Ltd. Its product description is CONN FFC FPC TOP 16POS 1MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for FH10A-16S-1SHB

  • Description：CONN FFC FPC TOP 16POS 1MM R/A
  • Series：FH10A
  • Mfr：Hirose Electric Co Ltd
  • Package：Tube
  • Flat Flex Type：FFC, FPC
  • Mounting Type：Surface Mount, Right Angle
  • Connector/Contact Type：Contacts, Top
  • Number of Positions：16
  • Pitch：0.039" (1.00mm)
  • Termination：Solder
  • FFC, FCB Thickness：0.30mm
  • Height Above Board：0.118" (3.00mm)
  • Locking Feature：Slide Lock
  • Cable End Type：Straight
  • Contact Material：Phosphor Bronze
  • Contact Finish：Solder Plating
  • Housing Material：Polybutylene Terephthalate (PBT)
  • Actuator Material：-
  • Features：Board Guide, Zero Insertion Force (ZIF)
  • Voltage Rating：50V
  • Operating Temperature：-55°C ~ 85°C
  • Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for FH10A-16S-1SHB

FH10A-16S-1SHB
