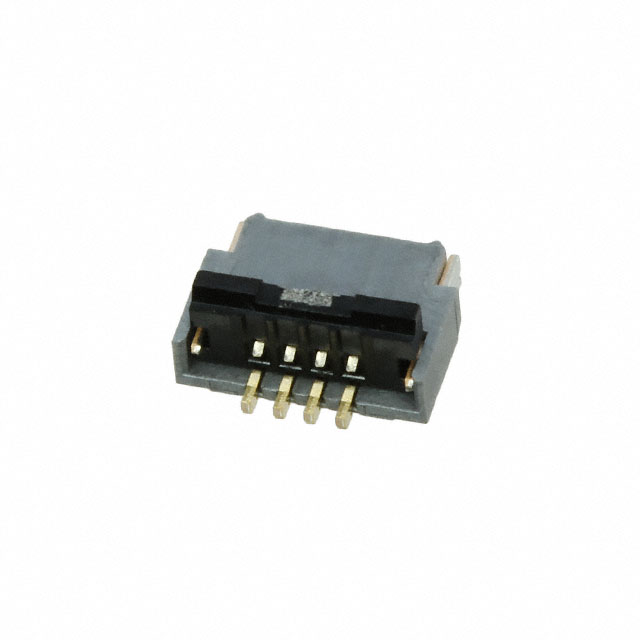

FH34SRJ-4S-0.5SH(50)

FH34SRJ-4S-0.5SH(50) is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Hirose Electric Co Ltd. Its product description is CONN FFC FPC 4POS 0.5MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for FH34SRJ-4S-0.5SH(50)

• Description：CONN FFC FPC 4POS 0.5MM R/A
• Series：FH34SRJ
• Mfr：Hirose Electric Co Ltd
• Package：Tape & Reel (TR),Cut Tape (CT)
• Flat Flex Type：FFC, FPC
• Mounting Type：Surface Mount, Right Angle
• Connector/Contact Type：Contacts, Top and Bottom
• Number of Positions：4
• Pitch：0.020" (0.50mm)
• Termination：Solder
• FFC, FCB Thickness：0.30mm
• Height Above Board：0.039" (1.00mm)
• Locking Feature：Rotary Lock, Backlock
• Cable End Type：Tapered
• Contact Material：Phosphor Bronze
• Contact Finish：Gold
• Housing Material：Liquid Crystal Polymer (LCP), Halogen Free
• Actuator Material：Polyamide (PA), Nylon
• Features：Zero Insertion Force (ZIF)
• Voltage Rating：50V
• Operating Temperature：-55°C ~ 105°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for FH34SRJ-4S-0.5SH(50)
