FIHAA06C1F

Power Line Filter Modules Overview

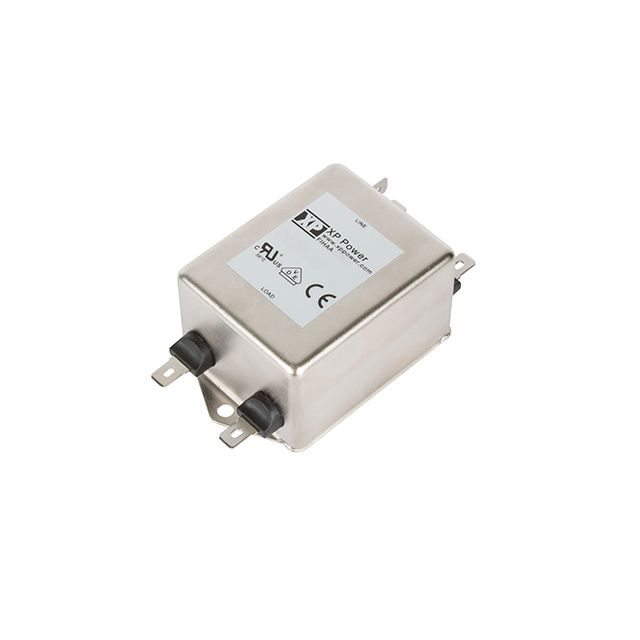

The XP Power FIHAA06C1F is a single-phase, two-stage EMI/EMI line filter designed for chassis mounting. It supports an operating frequency range of 0 Hz to 400 Hz and handles a maximum current of 6 A at 250 VAC or 264 VAC. The unit features capacitance values of 6.6 nF and 300 nF. Compliance standards include EN60939-2 and ANSI/UL1283. It utilizes quick connect terminals and operates within a temperature range of -40°C to +110°C.

Power Line Filter Modules Feature Summary

• Dual-stage filtering architecture for enhanced noise suppression
• Shielded metal body construction for durability and safety
• Integrated bleed resistor for safe capacitor discharge
• Quick connect terminal interface for simplified installation

Power Line Filter Modules Applications

• Class I appliance power line filtering
• Industrial equipment EMC mitigation
• General purpose power supply input protection

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating requirements against the 250VAC or 264VAC specifications before procurement. Confirm that the chassis mounting style and quick connect terminal type match the system design constraints. Ensure the operating temperature range of -40°C to +110°C aligns with the environmental conditions of the intended application site.

Power Line Filter Modules Selection Notes

Select this component when a single-phase, two-stage EMI filter is required for frequencies up to 400 Hz. The 6 A current rating suits moderate power applications. The chassis mount form factor and shielded metal case are critical for installations requiring robust mechanical stability and electromagnetic shielding compliance with EN60939-2 and UL1283 standards.

Power Line Filter Modules Part Context

This model belongs to the XP Power FIHA series of power line filters. The series includes variants such as the FIHMA06C1F, which shares similar chassis mount characteristics. These components are engineered for industrial and general-purpose applications requiring reliable EMI suppression in AC power lines.

Power Line Filter Modules Replacement Considerations

Cross-reference with other FIHA series models like FIHMA06C1F for similar chassis mount configurations. Verify that any substitute maintains the same two-stage filtering capability, 6 A current rating, and compatible terminal types to ensure functional equivalence without redesigning the mounting structure.

Power Line Filter Modules FAQ

Does the FIHAA06C1F include safety discharge features?

Yes, all models in this series are fitted with a bleed resistor to safely discharge the filter capacitors when power is removed.

What is the maximum operating frequency for this filter?

The filter is rated for an operating frequency range from 0 Hz to 400 Hz.
