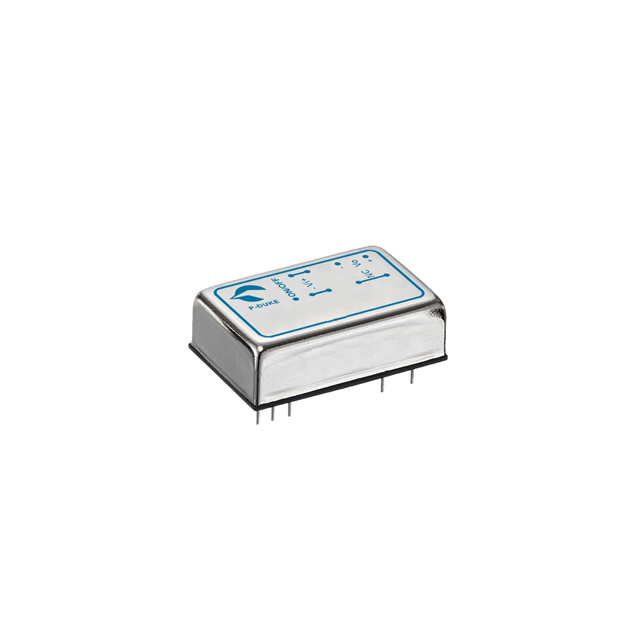

FKC08-48S12

FKC08-48S12 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists P-DUKE Technology. Its product description is DC DC CONVERTER 12V 8W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for FKC08-48S12

• Description：DC DC CONVERTER 12V 8W
• Series：FKC08 (8W)
• Mfr：P-DUKE Technology
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：36V
• Voltage - Input (Max)：75V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：666mA
• Power (Watts)：8 W
• Voltage - Isolation：1.6 kV
• Applications：ITE (Commercial)
• Features：Remote On/Off
• Operating Temperature：-40°C ~ 100°C (With Derating)
• Efficiency：86%
• Mounting Type：Through Hole
• Package / Case：24-DIP Module, 9 Leads
• Size / Dimension：1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
• Supplier Device Package：-
• Control Features：Enable, Active High
• Approval Agency：CB, CE, cURus
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for FKC08-48S12
