FL2D-30-302B

Common Mode Chokes Overview

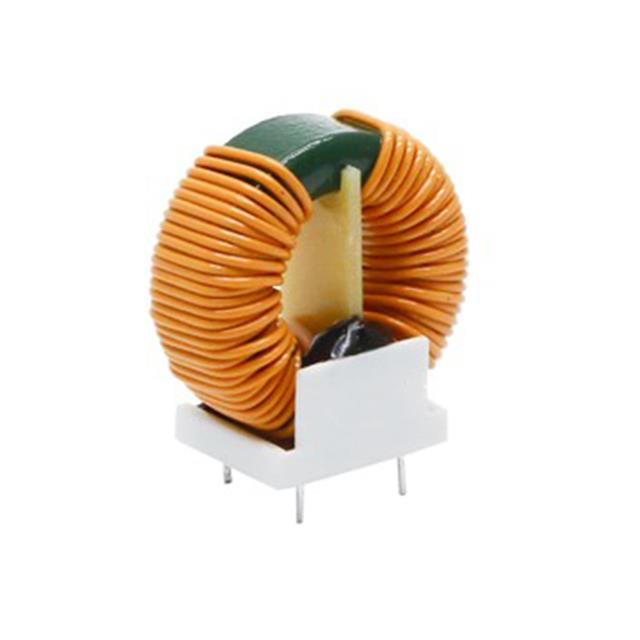

The FL2D-30-302B is a two-line common mode EMC filter manufactured by Mornsun America, LLC. It is designed for through-hole mounting and features a horizontal package configuration with four PC pins. The component is engineered to withstand high temperatures, ensuring reliable operation at ambient temperatures up to 105°C. This filter module serves as an electromagnetic interference suppression solution for electronic equipment requiring robust noise reduction capabilities in demanding thermal environments.

Common Mode Chokes Feature Summary

• High temperature resistance for reliable operation up to 105°C
• Two-line common mode filtering capability
• Through-hole mounting with horizontal package design

Common Mode Chokes Applications

• Electromagnetic interference suppression in industrial electronics
• Noise filtering for power supply input stages
• Compliance support for EMC standards in commercial ITE equipment

Common Mode Chokes Procurement Notes

Verify the specific part number suffix against official Mornsun documentation to confirm exact electrical characteristics and physical dimensions. Ensure compatibility with existing PCB layouts due to the through-hole pin configuration. Confirm RoHS compliance status if required by project specifications. Cross-reference datasheet revisions to ensure current manufacturing standards are met before final procurement decisions.

Common Mode Chokes Selection Notes

Select this component when high-temperature stability is critical for the application environment. The horizontal package design facilitates specific board layout requirements compared to vertical alternatives. Consider the common mode rejection needs of the circuit to ensure adequate noise attenuation. Verify that the through-hole mounting method aligns with the assembly process and mechanical constraints of the target enclosure.

Common Mode Chokes Part Context

This component belongs to the FL2D-30 series of EMC filters from Mornsun. The series includes various models differentiated by impedance values and inductance ratings, such as the FL2D-30-102 and FL2D-30-222. These filters are part of Mornsun's broader portfolio of magneto-electric isolation and power management products, focusing on reliability and performance in challenging operating conditions.

Common Mode Chokes Replacement Considerations

Publicly confirmed substitute part numbers for the FL2D-30-302B are not available in the provided source material. Users should consult official Mornsun documentation or authorized distributors for verified equivalent components that match the specific electrical and mechanical requirements.
