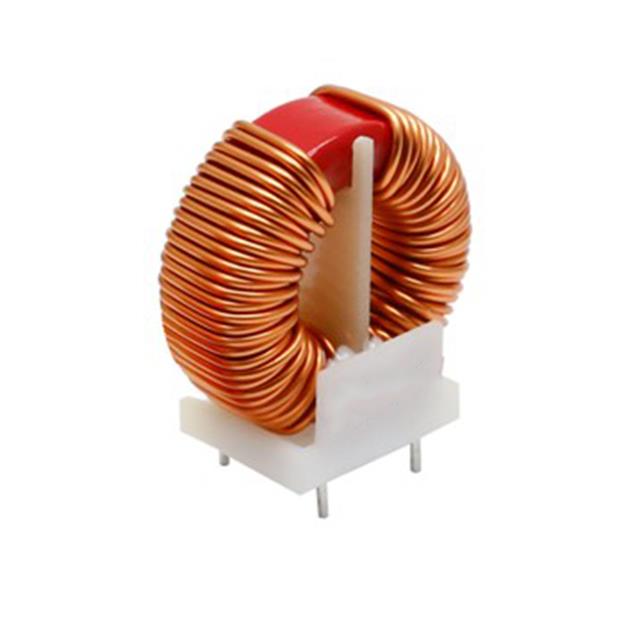

FL2D-80-562

FL2D-80-562 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Mornsun America, LLC. Its product description is CMC 5.6MH 8A 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for FL2D-80-562

• Description：CMC 5.6MH 8A 2LN TH
• Series：FL2D-80-xxx
• Mfr：Mornsun America, LLC
• Package：Tray
• Filter Type：Power Line
• Number of Lines：2
• Current Rating (Max)：8A
• DC Resistance (DCR) (Max)：38mOhm
• Voltage Rating - DC：-
• Voltage Rating - AC：-
• Operating Temperature：-40°C ~ 125°C
• Ratings：-
• Approval Agency：-
• Features：-
• Mounting Type：Through Hole
• Size / Dimension：0.906" L x 0.520" W (23.00mm x 13.20mm)
• Height (Max)：0.906" (23.00mm)
• Package / Case：Vertical, 4 PC Pin
• Inductance @ Frequency：5.6 mH @ 1 kHz
• Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for FL2D-80-562
