FLLE2050APVT5

Power Line Filter Modules Overview

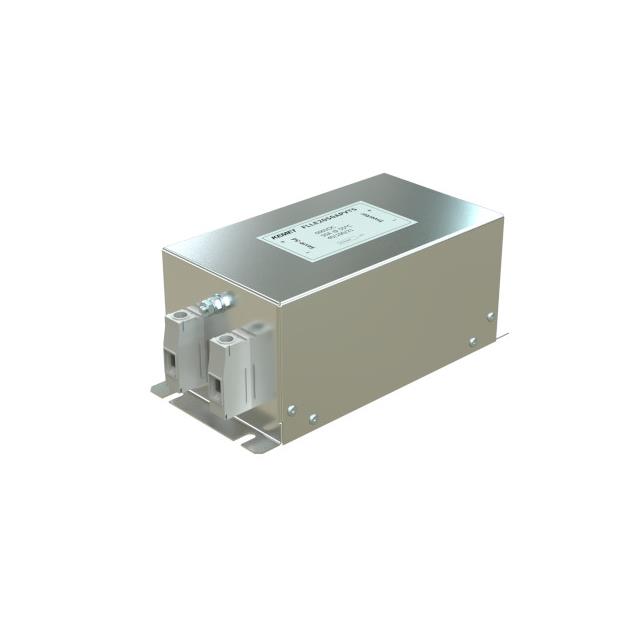

The KEMET FLLE2050APVT5 is a DC EMC/EMI line filter module designed for high-voltage applications. It features a single-stage filtering architecture with a rated current of 50 A and supports AC or DC voltages up to 1200 V (1.2 kV). The unit utilizes terminal block connections and threaded M6 posts for secure installation. Operating within a temperature range of -40°C to 100°C, it provides efficient noise suppression for power conversion systems.

Power Line Filter Modules Feature Summary

• Single-stage EMI/RFI noise suppression architecture
• High voltage tolerance up to 1200 V
• Robust mechanical mounting via threaded M6 posts

Power Line Filter Modules Applications

• DC power supply units
• Battery charging systems
• Portable electronic devices requiring noise isolation

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating configuration against the datasheet, as sources indicate both 600 V and 1200 V ratings. Confirm the terminal interface type matches the system requirements. Ensure the operating temperature range aligns with the intended environment. Cross-reference the part number suffixes to guarantee the correct variant is ordered.

Power Line Filter Modules Selection Notes

Select this component when high-current DC filtering is required in compact spaces. The 50 A rating suits medium-to-high power applications. Consider the physical dimensions and mounting style for enclosure integration. Evaluate thermal management needs given the 100°C maximum operating limit.

Power Line Filter Modules Part Context

This model belongs to KEMET's FLLE2-PV series of power line filters. These modules are engineered for electromagnetic interference suppression in demanding environments. The series emphasizes reliability and efficiency in power electronics.

Power Line Filter Modules Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
