FLLE2150APXT7

Power Line Filter Modules Overview

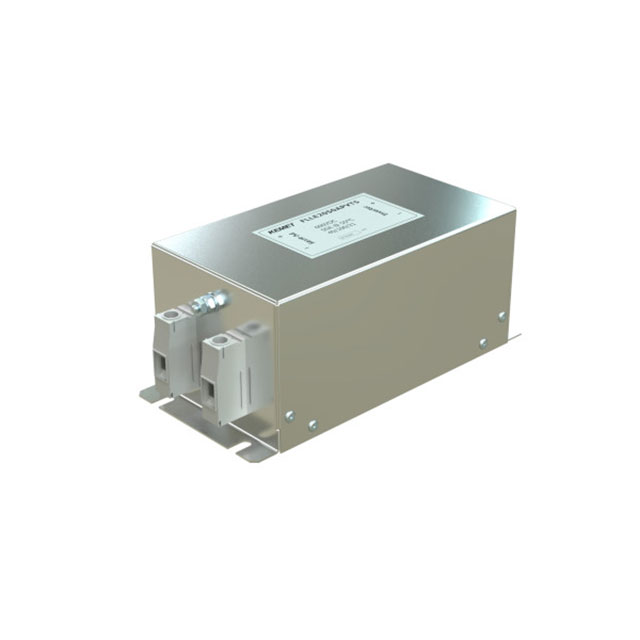

The KEMET FLLE2150APXT7 is a single-phase power line filter designed for high-current industrial applications. It features a rated DC voltage of 600 VDC and a current rating of 150 A. The unit measures 140 mm in width and operates within a temperature range of -40°C to +85°C. This component provides electromagnetic interference suppression for power systems requiring robust filtering capabilities.

Power Line Filter Modules Feature Summary

• Single-phase power line filter configuration
• High current handling capability up to 150 A
• Rated for 600 VDC operation
• Wide operating temperature range

Power Line Filter Modules Applications

• Industrial power supply filtering
• Motor drive input stages
• Power conversion systems

Power Line Filter Modules Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct specifications. Confirm that the required current rating and voltage tolerance align with the system design requirements before procurement. Check for any specific mounting or wiring instructions provided in the datasheet.

Power Line Filter Modules Selection Notes

Select this component when a single-phase filter with a 150 A current rating and 600 VDC voltage rating is required. Ensure the physical dimensions, specifically the 140 mm width, fit the available enclosure space. Verify that the operating temperature range meets the environmental conditions of the installation site.

Power Line Filter Modules Part Context

This part belongs to KEMET's power line filter series, designed for noise suppression in electrical circuits. It utilizes internal filtering elements to attenuate electromagnetic interference. The component is engineered for durability in demanding industrial environments, providing reliable performance under high load conditions.

Power Line Filter Modules Replacement Considerations

Consult the official KEMET replacement guide for verified substitute part numbers. Ensure any alternative component matches the 150 A current rating, 600 VDC voltage rating, and single-phase configuration. Verify dimensional compatibility and terminal type before substitution.
