FLLE2250APXI1

Power Line Filter Modules Overview

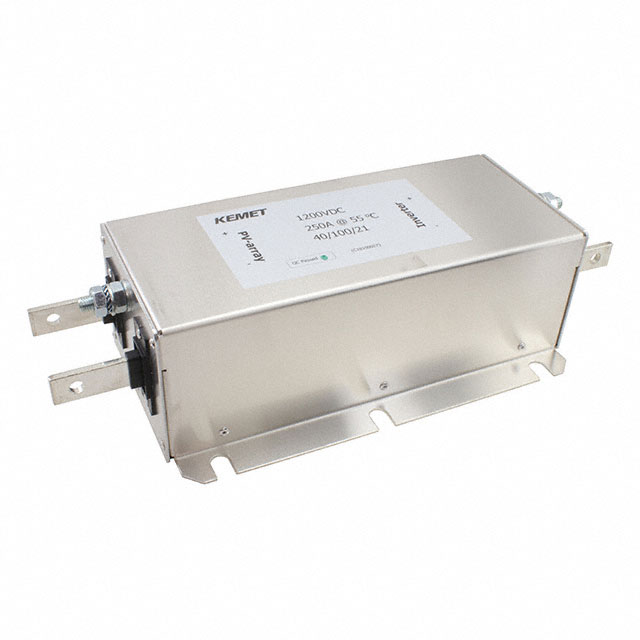

The KEMET FLLE2250APXI1 is a single-stage DC power line filter designed for high-voltage applications. It features a rated voltage of 1200 VDC and supports a continuous current of 250 A at 55°C. The unit utilizes a chassis mounting configuration with terminal post connections. Physical dimensions are approximately 300 mm in length, 130 mm in width, and 100 mm in height. This component serves as an EMI/EMI filter to attenuate high-frequency noise within photovoltaic and inverter systems.

Power Line Filter Modules Feature Summary

• Engineered to attenuate high-frequency noise that may degrade the performance or lifetime of photovoltaic panels
• Designed specifically for use in inverter and PV-array applications
• Constructed as a single-stage DC EMC/EMI line filter

Power Line Filter Modules Applications

• Photovoltaic panel systems
• Inverter circuits
• PV-array installations

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version and environmental compliance status directly with KEMET or authorized distributors. Confirm that the 250 A rating aligns with your thermal management design, as this specification is defined at 55°C. Ensure mechanical compatibility with the specified chassis mounting style and terminal post interface before integration into the final assembly.

Power Line Filter Modules Selection Notes

Select this model when a robust, single-stage solution is required for 1200 VDC systems carrying up to 250 A. It is suitable for environments where reducing high-frequency interference is critical to maintaining equipment longevity. Consider the physical footprint of 300x130x100 mm during layout planning to ensure adequate clearance for chassis mounting and thermal dissipation.

Power Line Filter Modules Part Context

This component belongs to KEMET’s Power Line Filter Modules category. It is engineered for industrial-grade reliability in renewable energy infrastructure. The FLLE series addresses common electromagnetic interference challenges in high-power DC conversion, providing a standardized form factor for integration into larger power distribution units.

Power Line Filter Modules Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult KEMET technical support for equivalent specifications if this specific model is unavailable.

Power Line Filter Modules FAQ

What is the maximum operating temperature for the continuous current rating?

The 250 A current rating is specified at an ambient temperature of 55°C.

How is this filter physically connected to the circuit?

It uses a chassis mount configuration with terminal post connections.
