FLTR100V10Z

Power Line Filter Modules Overview

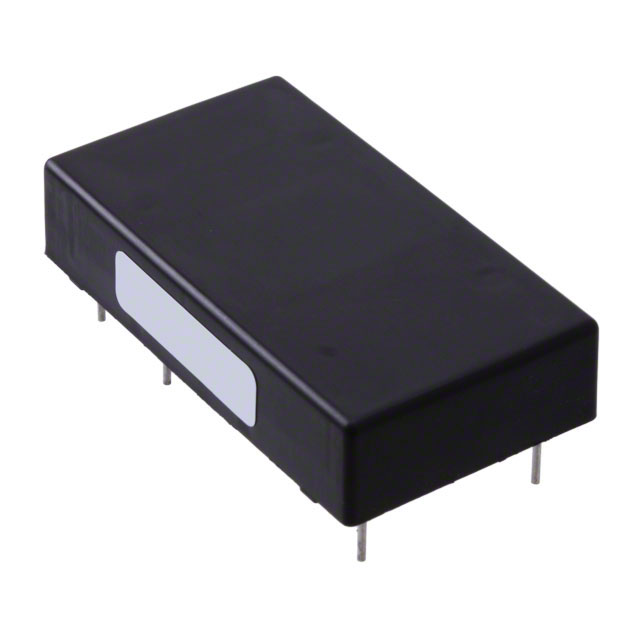

The FLTR100V10Z is an EMI filter circuit manufactured by OmniOn Power. It is designed for applications requiring input voltages up to 75 Vdc and handling currents of 10 A. The component utilizes a through-hole mounting configuration with a pin pitch of 0.18 inches. This product falls under the Filters subcategory within the broader EMI Filter Circuits classification.

Power Line Filter Modules Feature Summary

• Designed for high-current filtering applications up to 10 A
• Supports input voltage levels up to 75 Vdc
• Utilizes a through-hole mounting style for board integration

Power Line Filter Modules Applications

• Intermediate bus architecture filtering
• Power supply input stage noise suppression
• Industrial equipment power conditioning

Power Line Filter Modules Procurement Notes

This component is currently listed as obsolete or discontinued by the manufacturer. Verification of availability should be conducted through authorized distributors or secondary market suppliers, as standard manufacturing channels may no longer support this part number. Compliance with RoHS standards should be confirmed via specific datasheet documentation prior to procurement.

Power Line Filter Modules Selection Notes

Select this component when a dedicated EMI filter is required for 75 Vdc systems operating at 10 A. Ensure the PCB layout accommodates the specified 0.18-inch pin spacing. Consider thermal management requirements associated with continuous current loads in the final assembly design.

Power Line Filter Modules Part Context

The FLTR100V10Z belongs to the EMI Filter Circuits product line from OmniOn Power. It serves as a passive component solution for electromagnetic interference mitigation in DC power distribution networks, complementing active converter modules within the manufacturer's portfolio.

Power Line Filter Modules Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Due to the discontinued status, alternative solutions must be evaluated based on electrical specifications and mechanical footprint compatibility.
